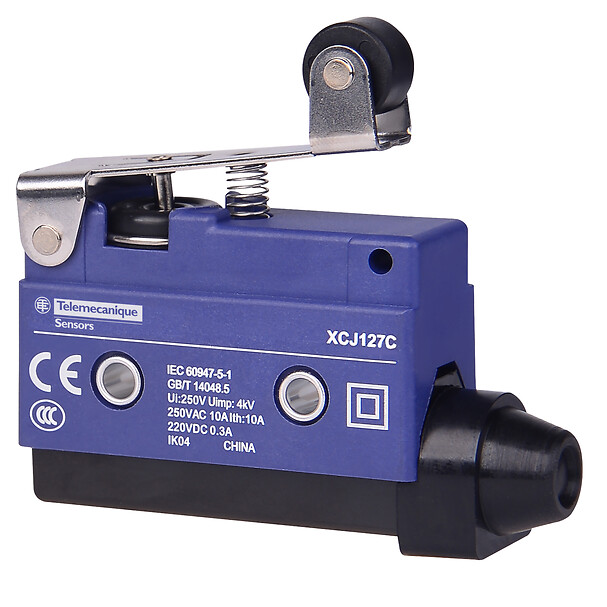

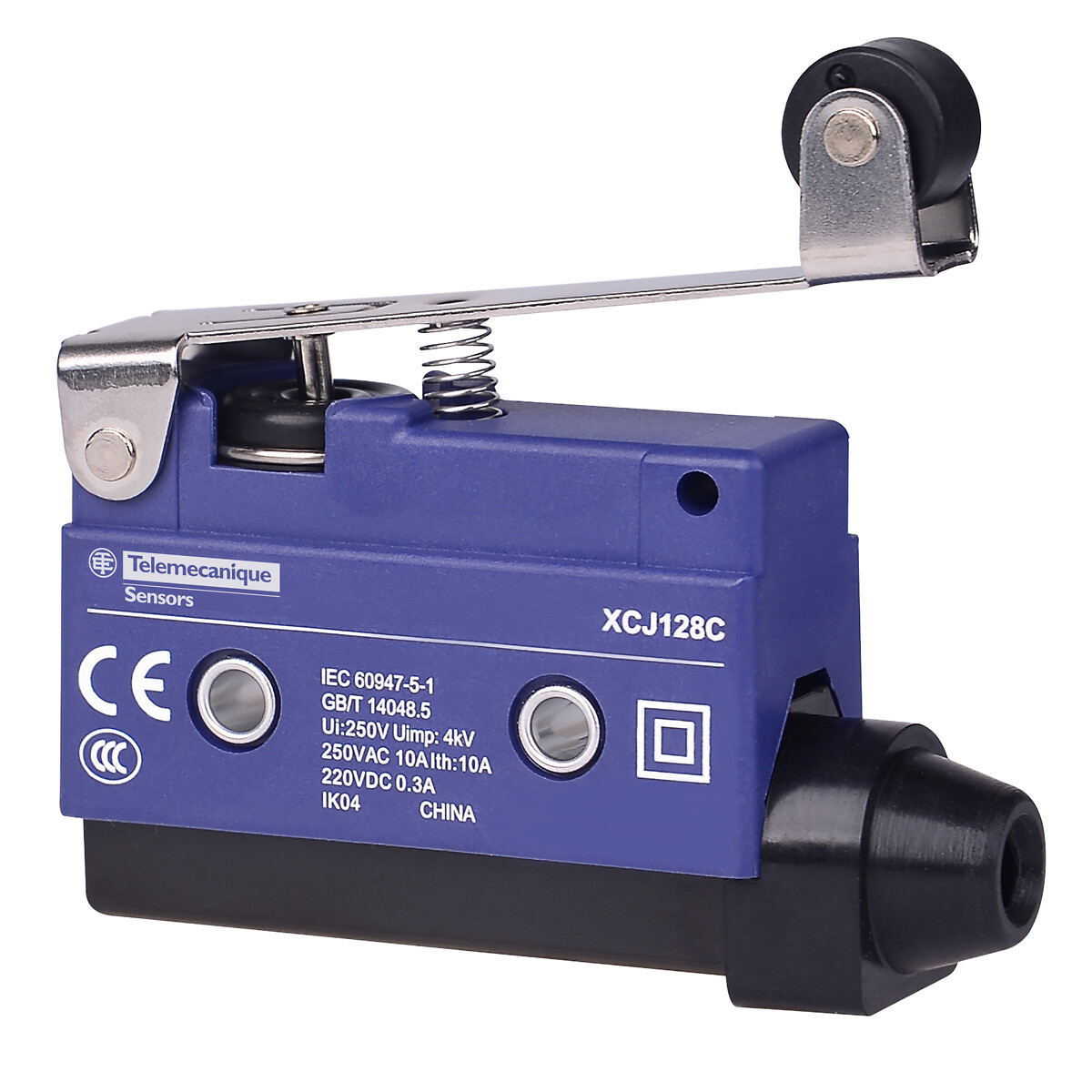

XCJ127C
Short flat lever, roller end plunger
Commercialised
Expand all
Datasheet
Range of product
OsiSense XC
Series name
Basic
Product or component type
Limit switch
Product specific application
Light to medium duty
Device short name
XCJ
Body type
Fixed
Head type
Plunger head
Material
Plastic
Fixing mode
By the body
Movement of operating head
Linear
Type of operator
Roller lever plunger thermoplastic short and flat
Switch actuation
By 30° cam
Type of approach
Lateral approach, 1 direction
Electrical connection
Screw-clamp terminals
Cable entry
1 flexible rubber cable gland, cable outer diameter: 8.5-10.5 mm
Contact operation
Snap action
Positive opening
Without
Contacts insulation form
C
Operating rate
120 CYCLE_PER_MINUTE
Contact code designation
A300, AC (Ue = 240 V), Ie = 10 A, Ithe = 10 A conforming to IEC 60947-5-1, R300, DC (Ue = 220 V), Ie = 0.3 A conforming to IEC 60947-5-1
Resistance across terminals
25 MOhm
Terminals description ISO n°1
(NO-NC-C)OF
Shock resistance
10 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
+/- 1.5 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP40 conforming to IEC 60529
Electrical shock protection class
Class II conforming to IEC 60947-5-1
Marking
CCC
CE
CE
Standards
GB 14048.5
IEC 60947-5-1
IEC 60947-5-1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2 CENTIMETER
Package 1 width
6.5 CENTIMETER
Package 1 length
7 CENTIMETER
Package 1 weight
63 GRAM
Unit type of package 2
BB1
Number of units in package 2
10
Package 2 height
8 CENTIMETER
Package 2 width
8.5 CENTIMETER
Package 2 length
22 CENTIMETER
Package 2 weight
675 GRAM
Unit type of package 3
S03
Number of units in package 3
150
Package 3 height
30 CENTIMETER
Package 3 width
30 CENTIMETER
Package 3 length
40 CENTIMETER
Package 3 weight
10.529 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

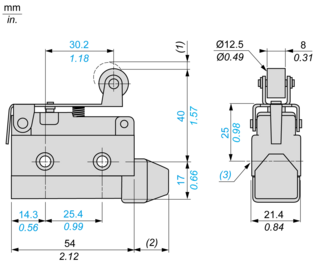

Dimensions
Connection and Schema
Wiring Diagram
Technical Description

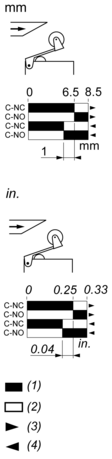

Type of Operator and Functional Diagram, Travel Distance
