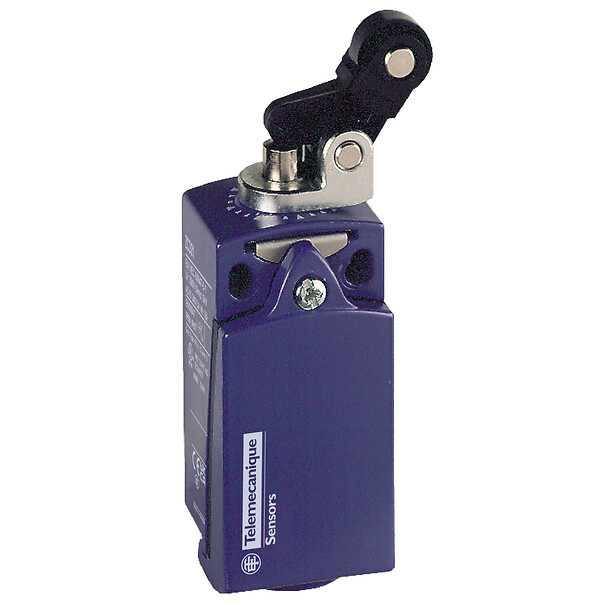

XCKD2127P16

Limit switch, Limit switches XC Standard, XCKD, thermoplastic plastic roller lever plung. Ver, 1NC+1 NO, snap, M16

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Characteristics
Technical Drawings
Documents & Downloads
Related products & accessories

Expand all

Datasheet

Range of product

Telemecanique Limit switches XC Standard

Series name

Standard format

Product or component type

Limit switch

Device short name

XCKD

Sensor design

Compact

Body type

Fixed

Head type

Plunger head

Material

Metal

Body material

Zamak

Head material

Zamak

Fixing mode

By the body

Movement of operating head

Linear

Type of operator

Spring return roller lever plunger thermoplastic

Type of approach

Vertical approach, 1 direction

Contacts type and composition

1 NC + 1 NO

Contact operation

Snap action

Switch actuation

By 30° cam

Electrical connection

Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²

Cable entry

1 entry tapped for M16 x 1.5 cable gland, cable outer diameter: 4-8 mm

Contacts insulation form

Positive opening

With

Repeat accuracy

0.1 mm on the tripping points with 1 million operating cycles

Contact code designation

A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1, A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A

Resistance across terminals

25 MOhm conforming to IEC 60255-7 category 3

Terminals description ISO n°1

(13-14)NO
(21-22)NC

Shock resistance

50 gn for 11 ms conforming to IEC 60068-2-27

Vibration resistance

25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6

IP degree of protection

IP66 conforming to IEC 60529, IP67 conforming to IEC 60529

IK degree of protection

IK06 conforming to IEC 62262

Electrical shock protection class

Class I conforming to IEC 61140, class I conforming to NF C 20-030

Protective treatment

Product certifications

CCC
CSA
UL

Standards

CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
UL 508

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

3.4 CENTIMETER

Package 1 weight

0.176 KILOGRAM

Package 1 width

4.5 CENTIMETER

Package 1 length

10.6 CENTIMETER

Unit type of package 2

S01

Number of units in package 2

Package 2 height

15 CENTIMETER

Package 2 width

15 CENTIMETER

Package 2 length

40 CENTIMETER

Package 2 weight

4.449 KILOGRAM

Unit type of package 3

CAR

Number of units in package 3

Package 3 height

3.4 CENTIMETER

Package 3 width

4.5 CENTIMETER

Package 3 length

10.6 CENTIMETER

Package 3 weight

0.176 KILOGRAM

Indivisible sale quantity

California proposition 65

WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

Technical Drawings

Dimensions

(1) Tapped entry for M16 x 1.5
(2) 2 elongated holes Ø 4.3 x 6.3 mm on 22 mm centres, 2 holes Ø 4.3 on 20 mm centres.
(3) 2 x Ø 3 holes for support studs, depth 4 mm.
