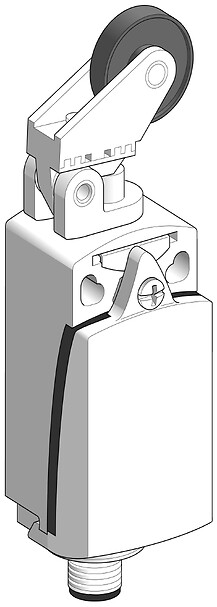

XCKD2128M12
Limit switch, Limit switches XC Standard, XCKD, thermoplastic plastic roller lev plunger H or V, 1NC+1 NO, snap, M12
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCKD
Sensor design
Compact
Body type
Fixed
Head type
Plunger head
Material
Metal
Body material
Zamak
Head material
Zamak
Fixing mode
By the body
Movement of operating head
Linear
Type of operator
Spring return roller lever plunger thermoplastic
Type of approach
Lateral or vertical approach, 1 direction
Contacts type and composition
1 NC + 1 NO
Contact operation
Snap action
Switch actuation
By 30° cam
Electrical connection
Male connector M12, 5 pins
Contacts insulation form
Zb
Positive opening
With
Repeat accuracy
0.1 mm on the tripping points with 1 million operating cycles
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Terminals description ISO n°1
(13-14)NO
(21-22)NC
(21-22)NC
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IK degree of protection
IK06 conforming to IEC 62262
Electrical shock protection class
Class I conforming to IEC 61140, class I conforming to NF C 20-030
Protective treatment
TC
Product certifications
CCC
CSA
UL
CSA
UL
Standards
CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
UL 508
IEC 60204-1
IEC 60947-5-1
UL 508
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.5 CENTIMETER
Package 1 weight
0.188 KILOGRAM
Package 1 width
4.9 CENTIMETER
Package 1 length
13 CENTIMETER
Unit type of package 2
S01
Number of units in package 2
22
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
4.405 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
3.5 CENTIMETER
Package 3 width
4.9 CENTIMETER
Package 3 length
13.2 CENTIMETER
Package 3 weight
0.19 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- (1) 2 elongated holes Ø 4.3 x 6.3 mm on 22 mm centres, 2 holes Ø 4.3 on 20 mm centres.
- (2) 2 x Ø 3 holes for support studs, depth 4 mm.
Mounting with Cable Entry
Position of Cable Gland
- (1) Recommended
- (2) To be avoided
Setting-up
Plunger or Multi-directional Heads
Wiring Diagram
2-pole NC + NO Snap Action
Connections
M12 Connector
- 1-2 : NC
- 3-4 : NO
- 5 : Grounding
Characteristics of Actuation
Switch Actuation by 30° Cam
Functionnal Diagram
- (P) Positive opening point
- (A) Cam displacement
- (1) NC contact with positive opening operation
- (2) Closed
- (3) Open
- (4) Tripping
- (5) Resetting
