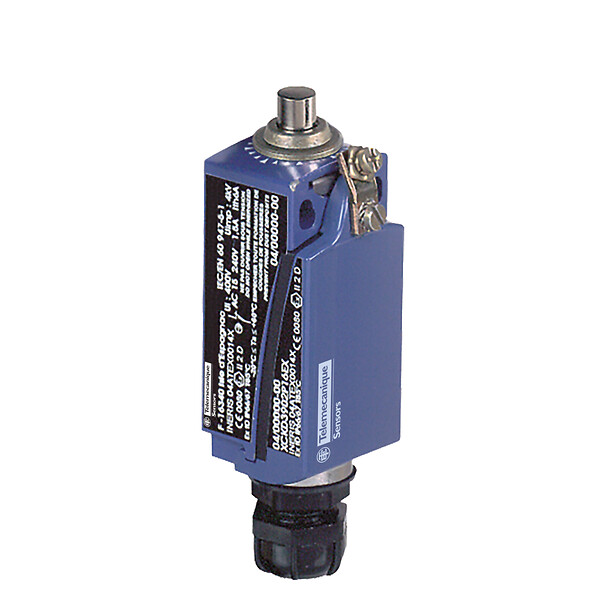

XCKD3910P16EX

Telemecanique Limit switches XC Standard

Standard format

Limit switch

XCKD

Compact form B conforming to CENELEC EN 50047

Fixed

Plunger head

Metal

By the body

Linear

Spring return plunger metal

On end

Vertical approach, 1 direction

Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 0.75 mm²

2 NC + 1 NO

Zb

Snap action

With

IP66 conforming to IEC 60529, IP67 conforming to IEC 60529

Zamak

Zamak

B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1, B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A

25 MOhm conforming to IEC 60255-7 category 3

II2 D-Ex tb IIIC T85°C Db IP66/67

50 gn for 11 ms conforming to IEC 60068-2-27

25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6

Class I conforming to IEC 61140, class I conforming to NF C 20-030

TC

Zone 21 - 22

IEC-Ex INE 17.0020X
INERIS 04ATEX0014X

IEC 60079-0
IEC 60079-31

2014/34/EU - ATEX directive

PCE

1

9.1 CENTIMETER

8.7 CENTIMETER

15 CENTIMETER

0.222 KILOGRAM

S03

12

30 CENTIMETER

30 CENTIMETER

40 CENTIMETER

1.9 KILOGRAM

CAR

1

14 CENTIMETER

5 CENTIMETER

4 CENTIMETER

0.171 KILOGRAM

1
