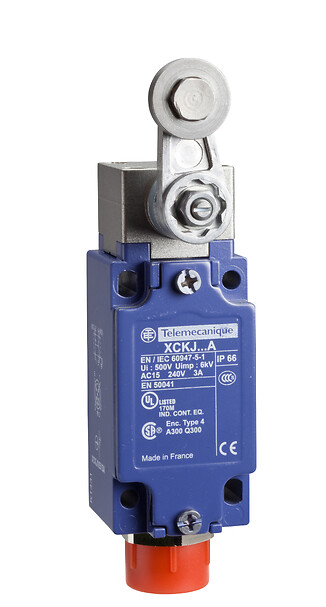

XCKJ10513A
Limit switch, XC Standard, XCKJ, steel roller lever, 1NC+1 NO, snap action, 7/8"
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCKJ
Sensor design
Form A conforming to CENELEC EN 50041
Body type
Fixed
Head type
Rotary head
Material
Metal
Body material
Zamak
Head material
Zamak
Fixing mode
By the body
Movement of operating head
Rotary
Type of operator
Spring return roller lever metal
Type of approach
Lateral approach, 1 or 2 programmable direction
Contacts type and composition
1 NC + 1 NO
Contact operation
Snap action
Switch actuation
By 30° cam
Contacts insulation form
Zb
Electrical connection
Male connector 7/8", 5 pins
Positive opening
With
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Terminals description ISO n°1
(13-14)NO
(21-22)NC
(21-22)NC
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP66 conforming to IEC 60529
IK degree of protection
IK07 conforming to IEC 62262
Overvoltage category
Class I conforming to IEC 61140, class I conforming to NF C 20-030
Protective treatment
TH
Product certifications
CCC
CSA
UL
CSA
UL
Standards
CENELEC EN 50041
CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
UL 508
CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
UL 508
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
19 CENTIMETER
Package 1 width
6 CENTIMETER
Package 1 length
5.5 CENTIMETER
Package 1 weight
0.531 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
18
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
9.871 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
12.6 CENTIMETER
Package 3 width
4.1 CENTIMETER
Package 3 length
6.8 CENTIMETER
Package 3 weight
0.49 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Mounting with Cable Entry
Position of Cable Gland
Mounting with Rotary Heads and Levers
Type of Cam
Setting-up with Lever Head
Setting-up with Head ZCKE05
Direction of Actuation Programming
Wiring Diagram
2-pole NC + NO Snap Action
Wiring Diagram
Connections
Characteristics of Actuation
Switch Actuation on End
Functionnal Diagram
