XCKL521

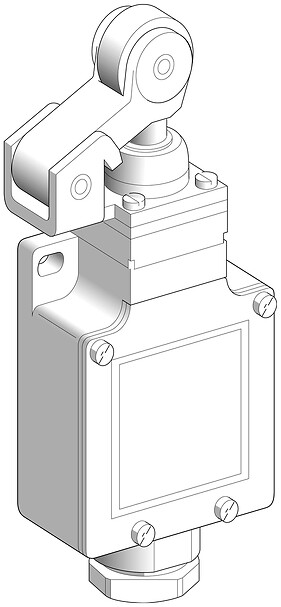

Limit switch, Limit switches XC Standard, XCKL, thermoplastic plastic roller lever plunger, 1NC+1 NO, slow, Cable gland
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCKL
Body type
Fixed
Head type
Plunger head
Material
Metal
Body material
Zamak
Fixing mode
By the body
Movement of operating head
Linear
Type of operator
Spring return roller lever plunger thermoplastic
Type of approach
Lateral approach, 1 direction
Cable entry
1 metal cable gland entry, cable outer diameter: 6-13.5 mm
Contacts type and composition
1 NC + 1 NO
Contact operation
Slow-break, break before make
Switch actuation
By 30° cam
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
Contacts insulation form
Zb
Positive opening
With
Contact code designation
A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Terminals description ISO n°1
(13-14)NO
(21-22)NC
(21-22)NC
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP66 conforming to IEC 60529
IK degree of protection
IK05 conforming to IEC 62262
Electrical shock protection class
Class I conforming to IEC 61140, class I conforming to NF C 20-030
Protective treatment
TC
Standards
CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
UL 508
IEC 60204-1
IEC 60947-5-1
UL 508
Product certifications
CSA
UL
UL
Unit type of package 1
PCE
Number of units in package 1
1
Package 2 height
3.3 CENTIMETER
Package 2 width
6.6 CENTIMETER
Package 2 length
14.8 CENTIMETER
Package 2 weight
314 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- (1) Pg 13.5 cable gland
- Ø : 2 elongated holes Ø 5.2 x 6.2
Mounting with Cable Entry
Position of Cable Gland
- (1) Recommended
- (2) To be avoided
Wiring Diagram
2-pole NC + NO Break Before Make, Slow Break
Characteristics of Actuation
Switch Actuation by 30° Cam
Functionnal Diagram
- (P) Positive opening point
- (A) Cam displacement
- (1) NC contact with positive opening operation
- (2) Closed
- (3) Open
Expand all
Documents & Downloads
Document name
Date
Size
2024-07-15
68162797
2024-07-31
62841900
Document name
Date
Size
1/13/2005
140703
1/13/2005
202156
1/13/2005
20722
1/13/2005
289954
1/13/2005
337620
1/13/2005
37372
1/13/2005
386894
1/13/2005
410998
1/13/2005
499156
Document name
Date
Size
2025-05-19
262316
Document name
Date
Size
2024-10-21
210518
2024-10-21
225137
Expand all
Related products & accessories
DE9RA1012
Telemecanique Safety switches XCS -1/2' NPT conduit adaptor, for plastic switch XCSPA
XCKZ09
Tap off terminal for cabling continuity, for limit switch
XCMZ07
Spacer for angular positioning of head with adjustable lever, for limit switch
ZCE05
Limit switch head, Limit switches XC Standard, ZCE, without lever spring return left or right actuation
