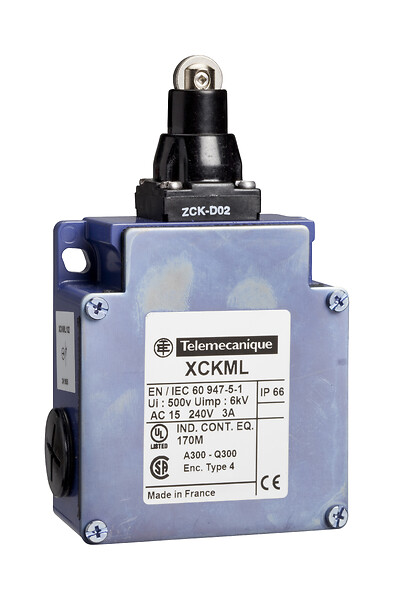

XCKML102

Expand all

Datasheet

Range of product

Telemecanique Limit switches XC Standard

Series name

Standard format

Product or component type

Limit switch

Device short name

XCKML

Body type

Fixed

Head type

Plunger head

Material

Metal

Body material

Zamak

Fixing mode

By the body

Movement of operating head

Linear

Type of operator

Spring return roller plunger metal

Type of approach

Lateral approach, 2 directions

Cable entry

3 entries tapped for Pg 13.5 cable gland, cable outer diameter: 9-12 mm

Contacts type and composition

2 x (1 NC + 1 NO)

Contact operation

Snap action

Switch actuation

By 30° cam

Electrical connection

Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²

Contacts insulation form

Zb

Positive opening

With

Resistance across terminals

25 MOhm conforming to IEC 60255-7 category 3

Terminals description ISO n°1

(13-14)NO
(21-22)NC

Shock resistance

50 gn for 11 ms conforming to IEC 60068-2-27

Vibration resistance

25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6

IP degree of protection

IP66 conforming to IEC 60529

IK degree of protection

IK05 conforming to IEC 62262

Electrical shock protection class

Class I conforming to IEC 61140, class I conforming to NF C 20-030

Protective treatment

TC

Standards

CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
UL 508

Product certifications

CSA
UL

Unit type of package 1

PCE

Number of units in package 1

1

Unit type of package 2

S03

Number of units in package 2

20

Package 2 height

30 CENTIMETER

Package 2 width

30 CENTIMETER

Package 2 length

40 CENTIMETER

Package 2 weight

8.86 KILOGRAM

Indivisible sale quantity

1

California proposition 65

WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

Technical Drawings

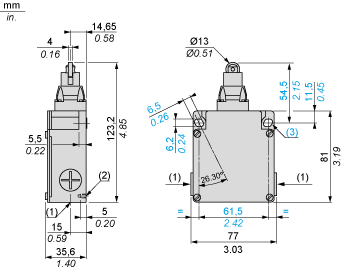

Dimensions

(1) 3 tapped entries for Pg 13.5 cable gland
(2) 2 centring holes Ø 3.9 ± 0.2, for cover fixing holes alignment.
Ø : 2 elongated holes 6.2 x 6.5, inclined at 26° 30' to the vertical axis, for M5 screws.

Mounting with Cable Entry

Position of Cable Gland

(1) Recommended
(2) To be avoided

Wiring Diagram

2 x 2-pole NC + NO Snap Action

Characteristics of Actuation

Switch Actuation by 30° Cam

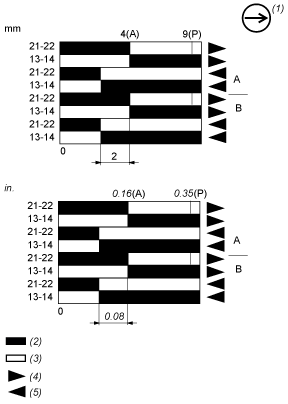

Functionnal Diagram

(P) Positive opening point
(A) Cam displacement
(1) NC contact with positive opening operation
(2) Closed
(3) Open
(4) Tripping
(5) Resetting
