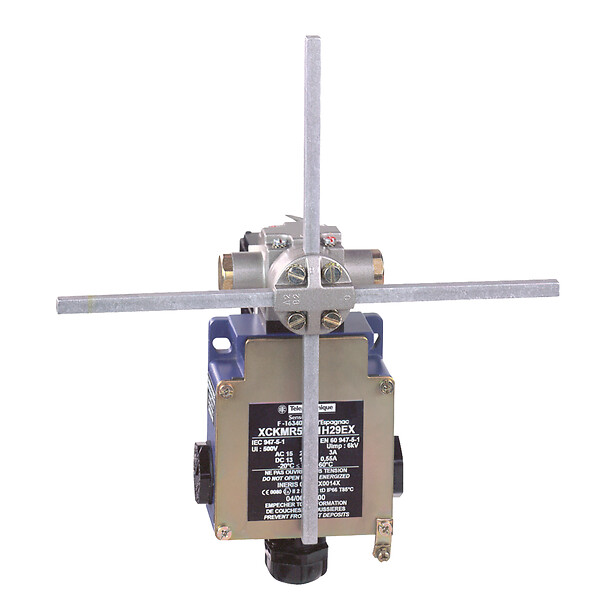

XCKMR54D2H29EX

Telemecanique Limit switches XC Standard

Standard format

Limit switch

For hoisting and mechanical handling applications

XCKMR

Fixed

Reversed rotary head

Metal

By the body

Rotary

Stay put crossed rods lever metal square rod 6 mm, L = 200 mm

By any moving part

Lateral approach, 2 directions

Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²

2 x (2 NC)

Zb

Slow-break, staggered

1 per direction

With

IP66 conforming to IEC 60529

A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1, A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q150, DC-13 (Ue = 125 V), Ie = 0.55 A conforming to IEC 60947-5-1, Q150, DC-13 (Ue = 125 V), Ie = 0.55 A conforming to IEC 60947-5-1 appendix A

25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A

II2 D-Ex tb IIIC T85°C Db IP66/67

50 gn conforming to IEC 60068-2-27

25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6

Class I conforming to IEC 60536, class I conforming to NF C 20-030

TC

Zone 21 - 22

IEC-Ex INE 17.0020X
INERIS 04ATEX0014X

IEC 60079-0
IEC 60079-31

2014/34/EU - ATEX directive

PCE

1

19.6 CENTIMETER

8 CENTIMETER

7.7 CENTIMETER

0.61 KILOGRAM

CAR

1

9 CENTIMETER

9 CENTIMETER

23 CENTIMETER

0.61 KILOGRAM

1
