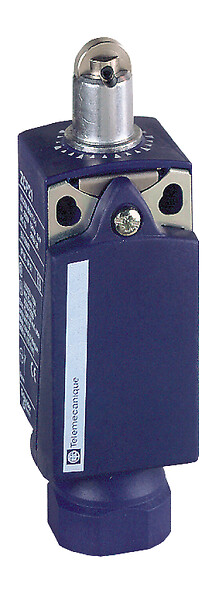

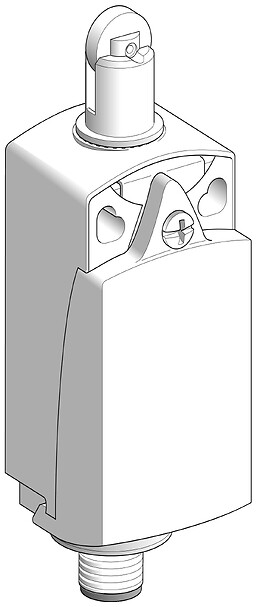

Movement of operating head
Linear
Type of operator
Spring return roller plunger metal
Switch actuation
By 30° cam
Type of approach
Lateral approach, 2 directions
Electrical connection
DEUTSCH connector male, 4 pins
Contacts type and composition
1 NC + 1 NO
Contacts insulation form
Zb
Contact operation
Snap action
Positive opening minimum force
36 N
Minimum force for tripping
12 N
Maximum actuation speed
0.5 m/s
Repeat accuracy
0.1 mm on the tripping points with 1 million operating cycles
[Ie] rated operational current
3 A at 50 V, AC-15 conforming to IEC 60947-5-1 appendix A
0.27 A at 50 V, DC-13 conforming to IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current
5 A
[Ui] rated insulation voltage
50 V conforming to UL 508
50 V conforming to CSA C22.2 No 14
50 V (pollution degree 3) conforming to IEC 60947-1
Maximum resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage
1.5 kV conforming to IEC 60664
1.5 kV conforming to IEC 60947-1
Short-circuit protection
6 A cartridge fuse, type gG
Electrical durability
5000000 cycles, DC-13, 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Mechanical durability
15000000 cycles
Terminals description ISO n°1
(13-14)NO
(21-22)NC
