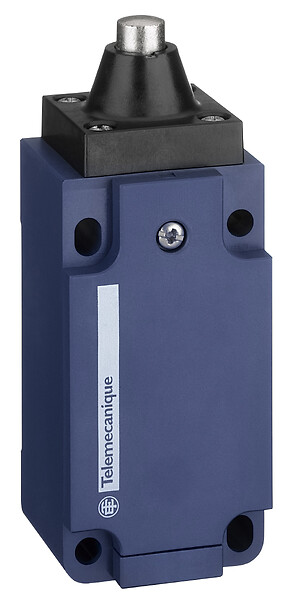

XCKS101H29

Limit switch XCKS, metal end plunger, 1NC+1NO, snap action, M20 cable entry

arrow

COMMERCIALISED

Expand all

Datasheet

Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCKS
Sensor design
Form B conforming to CENELEC EN 50041
Device presentation
Complete product
ETIM classification
ETIM 9 - EC000030 - End switch
Body type
Fixed
Head type
Plunger head
Material
Plastic
Body material
Plastic
Head material
Plastic
Fixing mode
By the body
Movement of operating head
Linear
Type of operator
Spring return plunger metal
Switch actuation
On end
Type of approach
Vertical approach, 1 direction
Number of poles
2
Product certifications
CCC
CSA
UL
Standards
CENELEC EN 50041
CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
UL 508
Indivisible sale quantity
1
Mechanical durability
25000000 cycles
Minimum force for tripping
15 N
Minimum actuation speed
0.01 m/mn
Maximum actuation speed
0.5 m/s
Cable entry
1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 7-13 mm
Contact code designation
A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
Repeat accuracy
0.05 mm on the tripping points with 1 million operating cycles
Electrical durability
5000000 cycles, DC-13, inductive load type, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, inductive load type, 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, inductive load type, 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Positive opening
With
Positive opening minimum force
30 N
Contacts insulation form
Zb
Contacts type and composition
1 NC + 1 NO
Terminals description ISO n°1
(13-14)NO
(21-22)NC
Contact operation
Snap action
[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60664, 6 kV conforming to IEC 60947-1
[Ui] rated insulation voltage
300 V conforming to UL 508, 500 V (pollution degree 3) conforming to IEC 60947-1, 300 V conforming to CSA C22.2 No 14
Overvoltage category
Class II conforming to IEC 61140, class II conforming to NF C 20-030
[Ithe] conventional enclosed thermal current
10 A AC
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Electrical shock protection class
Class II conforming to IEC 61140, class II conforming to NF C 20-030
Short-circuit protection
10 A cartridge fuse, type gG
Width
40 mm
Depth
37 mm
Product weight
0.125 kg
IK degree of protection
IK05 conforming to IEC 62262
IP degree of protection
IP67 conforming to IEC 60529, IP66 conforming to IEC 60529
Ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-40…70 °C
Shock resistance
40 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Protective treatment
TC
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
ID (Indonesia)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916053935
Package 1 height
4 cm
Package 1 width
6 cm
Package 1 length
13.3 cm
Package 1 weight
0.125 kg
Unit type of package 2
S02
Number of units in package 2
36
New Package 2 GTIN 14
13666916053932
Package 2 height
15 cm
Package 2 width
30 cm
Package 2 length
40 cm
Package 2 weight
5.612 kg
Unit type of package 3
CAR
Number of units in package 3
1
New Package 3 GTIN 14
23666916053939
Package 3 height
13.3 cm
Package 3 width
4 cm
Package 3 length
6 cm
Package 3 weight
0.144 kg

Expand all

Technical Drawings

Dimensions

epds
  • (1) 1 tapped entry for M20 x 1.5
  • (2) 2 elongated holes Ø 5.3 x 7.3.

Mounting with Cable Entry

Position of Cable Gland

epds
  • (1) Recommended
  • (2) To be avoided

Wiring Diagram

2-pole NC + NO Snap Action

epds

Characteristics of Actuation

Switch Actuation on End

epds

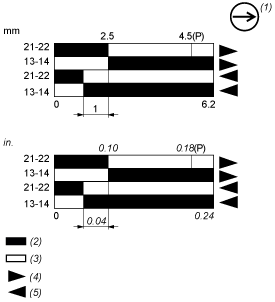

Functionnal Diagram

epds
  • (P) Positive opening point
  • (1) NC contact with positive opening operation
  • (2) Closed
  • (3) Open
  • (4) Tripping
  • (5) Resetting
