XCKS539

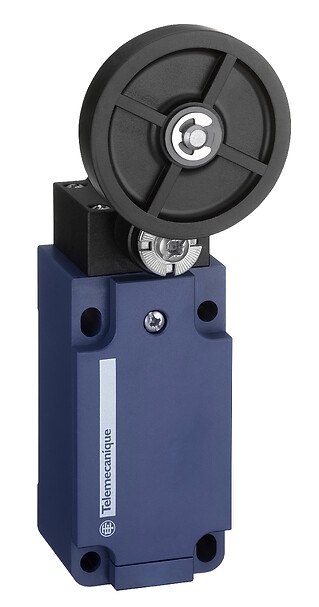

Limit switch, Limit switches XC Standard, XCKS, elastomer roller lever Ø 50 mm, 1NC+1 NO, slow, Pg13
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCKS
Sensor design
-
Body type
Fixed
Head type
Rotary head
Material
Plastic
Body material
Plastic
Head material
Plastic
Fixing mode
By the body
Movement of operating head
Rotary
Type of operator
Spring return roller lever elastomer roller diameter 50 mm
Type of approach
Lateral approach, 1 or 2 programmable direction
Cable entry
1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9-12 mm
Contacts type and composition
1 NC + 1 NO
Contact operation
Slow-break, break before make
Switch actuation
By 30° cam
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
Contacts insulation form
Zb
Positive opening
Without
Contact code designation
A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Terminals description ISO n°1
(13-14)NO
(21-22)NC
(21-22)NC
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP67 conforming to IEC 60529, IP66 conforming to IEC 60529
IK degree of protection
IK05 conforming to IEC 62262
Electrical shock protection class
Class II conforming to IEC 61140, class II conforming to NF C 20-030
Overvoltage category
Class II conforming to IEC 61140, class II conforming to NF C 20-030
Protective treatment
TC
Product certifications
CCC
CSA
UL
CSA
UL
Standards
CENELEC EN 50041
CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
UL 508
CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
UL 508
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
5 CENTIMETER
Package 1 width
9 CENTIMETER
Package 1 length
15.1 CENTIMETER
Package 1 weight
0.201 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
12
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.985 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
9 CENTIMETER
Package 3 width
5.5 CENTIMETER
Package 3 length
15 CENTIMETER
Package 3 weight
0.201 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

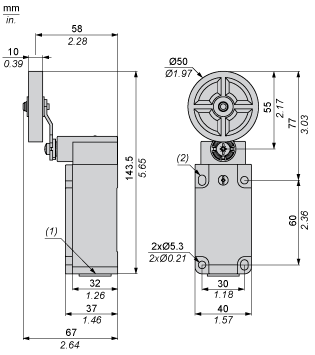

Dimensions
- (1) 1 tapped entry for Pg 13.5 cable gland
- (2) 2 elongated holes Ø 5.3 x 7.3.
Mounting with Cable Entry
Position of Cable Gland
- (1) Recommended
- (2) To be avoided
Mounting with Rotary Heads and Levers
Type of Cam
- (1) Recommended
- (2) To be avoided
Setting-up
Head Rotation Adjustment
- C : 1 Nm (+/- 20%) / 8.85 lb-in (+/- 20%)
Setting-up
Lever Angle Adjustment
- C : 1 Nm (+/- 20%) / 8.85 lb-in (+/- 20%)
Setting-up with Head ZCKD05
Direction of Actuation Programming
- C : 1 Nm (+/- 20%) / 8.85 lb-in (+/- 20%)
Wiring Diagram
2-pole NC + NO Break Before Make, Slow Break
Characteristics of Actuation
Switch Actuation by 30° Cam
Functionnal Diagram
- (1) Closed
- (2) Open
