XCMD2106L1
Limit switch, Limit switches XC Standard, XCMD, cat's whisker, 1NC+1 NO, snap, 1 m
COMMERCIALISED
Expand all
Datasheet
Range of product
TE LIMIT SWTES XC STNDRD
Series name
STANDARD FORMAT
Product or component type
LIMIT SWITCH
Device short name
XCMD
Sensor design
Miniature
Body type
FIXED
Head type
MULTI DIRECTIONAL HEAD
Material
METAL
Body material
ZAMAK
Head material
ZAMAK
Fixing mode
BY THE BODY
Movement of operating head
MULTI DIRECTIONAL
Type of operator
Spring return cat''s whisker
Type of approach
Multi-directional approach
Contacts type and composition
1 NC 1 NO
Contact operation
SNAP ACTION
Switch actuation
BY ANY MOVING PART

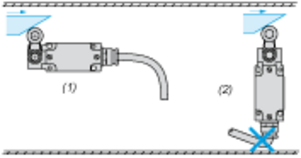

Electrical connection
Removable cable connector
Cable composition
5 X 0 75 MM2
Wire insulation material
PVR
Contacts insulation form
ZB
Positive opening
WITHOUT
Contact code designation
B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A,
R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A
R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A
Resistance across terminals
25 mOhm conforming to IEC 60255-7 category 3
Shock resistance
25 gn for 18 ms conforming to IEC 60068-2-27
Vibration resistance
5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP66 conforming to IEC 60529,
IP67 conforming to IEC 60529,
IP68 conforming to IEC 60529
IP67 conforming to IEC 60529,
IP68 conforming to IEC 60529
IK degree of protection
IK06 conforming to IEC 62262
Overvoltage category
Class I conforming to IEC 61140,
class I conforming to NF C 20-030
class I conforming to NF C 20-030
Protective treatment
TC
Product certifications
CCC
CSA
UL
CSA
UL
Standards
CSA C22 2 NO 14
IEC 60204 1
IEC 60947 5 1
UL 508
IEC 60204 1
IEC 60947 5 1
UL 508
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.6000 CENTIMETER
Package 1 width
15.5000 CENTIMETER
Package 1 length
18.5000 CENTIMETER
Package 1 weight
172.0000 GRAM
Unit type of package 2
S02
Number of units in package 2
30
Package 2 height
15.0000 CENTIMETER
Package 2 width
30.0000 CENTIMETER
Package 2 length
40.0000 CENTIMETER
Package 2 weight
5.5380 KILOGRAM
