XCMD2145M12
Limit switch XCMD, plastic roller lever, 1NC+1NO, snap action, M12 connector
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCMD
Sensor design
Miniature
Device presentation
Complete product
ETIM classification
ETIM 9 - EC000030 - End switch
Body type
Plug-in body
Head type
Rotary head
Material
Metal
Body material
Zamak
Head material
Zamak
Fixing mode
By the body
Movement of operating head
Rotary
Type of operator
Spring return roller lever thermoplastic variable length
Switch actuation
By 30° cam
Type of approach
Lateral approach, 2 directions
Number of poles
1
Product certifications
CCC
CSA
UL
CSA
UL
Standards
CSA C22.2 No 14
EN/IEC 60204-1
EN/IEC 60947-5-1
UL 508
EN/IEC 60204-1
EN/IEC 60947-5-1
UL 508
Indivisible sale quantity
1
Mechanical durability
10000000 cycles
Minimum force for tripping
0.1 N
Maximum actuation speed
1.5 m/s
Electrical durability
5000000 cycles, DC-13, 24 V, 3 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, 48 V, 2 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, 120 V, 1 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Electrical connection
Male connector M12, 4 pins
Positive opening
Without
Contacts insulation form
Za
Contacts type and composition
1 C/O
Contact operation
Snap action
[Uimp] rated impulse withstand voltage
2.5 kV conforming to IEC 60664, 2.5 kV conforming to IEC 60947-1
[Ui] rated insulation voltage
250 V (pollution degree 3) conforming to IEC 60947-5-1
[Ie] rated operational current
1.5 A at 240 V, AC-15 conforming to EN/IEC 60947-5-1 appendix A, 0.1 A at 250 V, DC-13 conforming to EN/IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current
3 A
Resistance across terminals
25 mOhm conforming to IEC 60255-7 category 3
Electrical shock protection class
Class I conforming to IEC 61140, class I conforming to NF C 20-030
Short-circuit protection
4 A cartridge fuse, type gG
Width
30 mm
Depth
16 mm
Product weight
0.135 kg
IK degree of protection
IK06 conforming to EN 62262
IP degree of protection
IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP68 conforming to IEC 60529
Ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-40…70 °C
Shock resistance
25 gn for 18 ms conforming to IEC 60068-2-27
Vibration resistance
5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Protective treatment
TC
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
ID (Indonesia)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916093269
Package 1 height
3.6 cm
Package 1 width
10.5 cm
Package 1 length
5.2 cm
Package 1 weight
0.135 kg
Unit type of package 2
S01
Number of units in package 2
10
New Package 2 GTIN 14
13666916093266
Package 2 height
15 cm
Package 2 width
15 cm
Package 2 length
40 cm
Unit type of package 3
S02
Number of units in package 3
50
New Package 3 GTIN 14
23666916093263
Package 3 height
15 cm
Package 3 width
30 cm
Package 3 length
40 cm
Package 3 weight
7.705 kg
Expand all
Technical Drawings

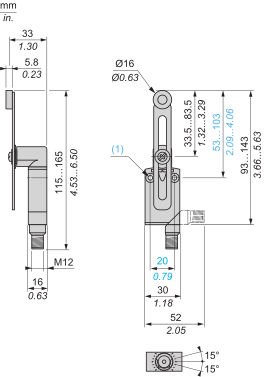

Dimensions
Mounting with Rotary Heads and Levers
Type of Cam
Setting-up with Head ZCE01 and ZCE09
Wiring Diagram
Single-pole CO Snap Action + Integral M12 4-pin Connector
Wiring Diagram
4-pin, M12, 3A-250V
Characteristics of Actuation
Switch Actuation by 30° Cam
Functional Diagram
