XCMD21F0M12
Limit switch XCMD, metal, steel end plunger, 1NC+1NO, snap action, M12 connector
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCMD
Sensor design
Miniature
Body type
Plug-in body
Head type
M12 plunger head
Material
Metal
Body material
Zamak
Head material
Zamak
Fixing mode
By the head
Movement of operating head
Linear
Type of operator
Spring return plunger metal
Type of approach
Vertical approach, 1 direction
Contacts type and composition
1 C/O
Contact operation
Snap action
Switch actuation
On end
Electrical connection
Male connector M12, 4 pins
Contacts insulation form
Za
Positive opening
Without
Resistance across terminals
25 mOhm conforming to IEC 60255-7 category 3
Shock resistance
25 gn for 18 ms conforming to IEC 60068-2-27
Vibration resistance
5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP68 conforming to IEC 60529
IK degree of protection
IK06 conforming to EN 62262
Electrical shock protection class
Class I conforming to IEC 61140, class I conforming to NF C 20-030
Protective treatment
TC
Product certifications
CCC
CSA
UL
CSA
UL
Standards
CSA C22.2 No 14
EN/IEC 60204-1
EN/IEC 60947-5-1
UL 508
EN/IEC 60204-1
EN/IEC 60947-5-1
UL 508
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.6 CENTIMETER
Package 1 width
7.6 CENTIMETER
Package 1 length
5.3 CENTIMETER
Package 1 weight
0.106 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
90
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
9.995 KILOGRAM
Unit type of package 3
BAG
Number of units in package 3
1
Package 3 height
1.6 CENTIMETER
Package 3 width
7.6 CENTIMETER
Package 3 length
5.3 CENTIMETER
Package 3 weight
0.106 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

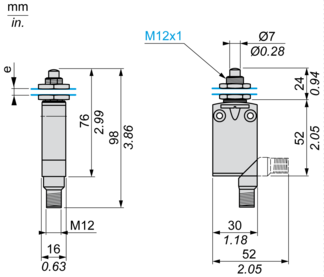

Dimensions
Panel Mounting
Mounting and Fixing Limit Switches by the Head
Setting-up
Plunger or Multi-directional Heads
Wiring Diagram
Single-pole CO Snap Action + Integral M12 4-pin Connector
Wiring Diagram
4-pin, M12, 3A-250V
Characteristics of Actuation
Switch Actuation on End
Functional Diagram
