Datasheet

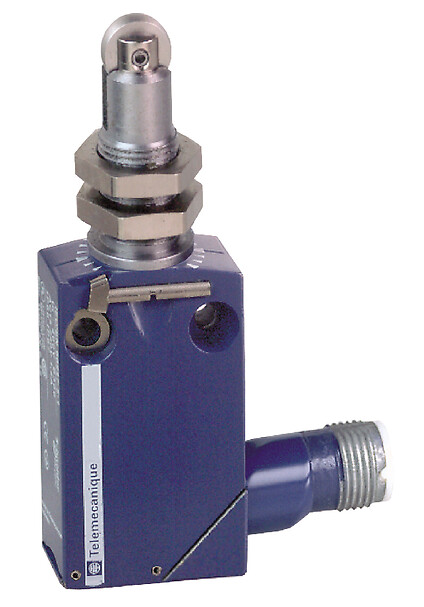

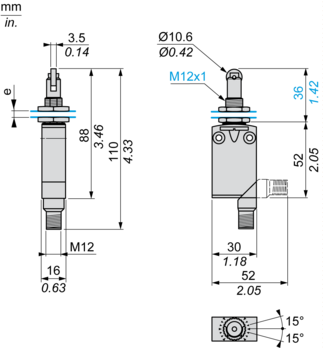

Technical Drawings
e : 8 mm max, panel cut-out Ø 12.5 mm, fixing nut thickness 3.5 mm.
Mounting and Fixing Limit Switches by the Head
(1) Recommended
(2) Forbidden
Plunger or Multi-directional Heads
Single-pole CO Snap Action + Integral M12 4-pin Connector
4-pin, M12, 3A-250V
1 : Common
2 : NC
3 : Grounding
4 : NO
Switch Actuation by 30° Cam
(P) Positive opening point
(A) Cam displacement
(1) Closed
(2) Open
(3) Tripping
(4) Resetting
