XCMD4111L5EX

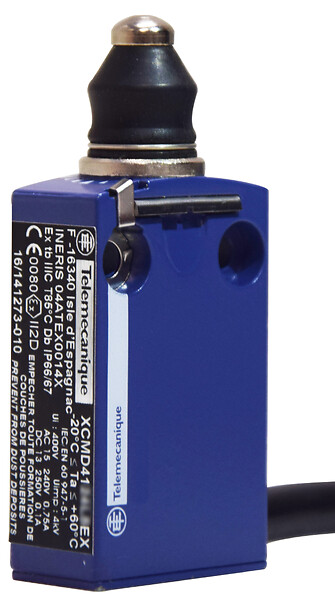

Limit switch XCMD, plunger with elastomer boot, 2NC+2NO, ATEX/IECEx, fixed terminal cable block
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCMD
Sensor design
Miniature
ETIM classification
ETIM 9 - EC000030 - End switch
Body type
Fixed
Head type
Plunger head
Material
Metal
Body material
Zamak
Head material
Zamak
Fixing mode
By the body
Movement of operating head
Linear
Type of operator
Spring return plunger metal with elastomer boot
Switch actuation
On end
Type of approach
Vertical approach, 1 direction
Number of poles
4
Product certifications
IEC-Ex INE 17.0020X
INERIS 04ATEX0014X
INERIS 04ATEX0014X
Marking
II2 D-Ex tb IIIC T85°C Db IP66/67
Directives
2014/34/EU - ATEX directive
Standards
IEC 60079-0
IEC 60079-31
IEC 60079-31
Indivisible sale quantity
1
Mechanical durability
10000000 cycles
Minimum force for tripping
8.5 N
Minimum actuation speed
0.01 m/mn
Maximum actuation speed
0.5 m/s
Contact code designation
R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A, C300, AC-15 (Ue = 240 V), Ie = 0.75 A conforming to IEC 60947-5-1, C300, AC-15 (Ue = 240 V), Ie = 0.75 A conforming to IEC 60947-5-1 appendix A
Electrical durability
5000000 cycles, DC-13, inductive load type, 24 V, 3 W, operating rate <3600 cyc/mn, load factor: 0.5 , DC conforming to IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, inductive load type, 48 V, 2 W, operating rate <3600 cyc/mn, load factor: 0.5 , DC conforming to IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, inductive load type, 120 V, 1 W, operating rate <3600 cyc/mn, load factor: 0.5 , DC conforming to IEC 60947-5-1 appendix C
Electrical connection
Fixed cable
Cable length
5 m
Cable composition
9 x 0.34 mm²
Wire insulation material
PvR
Positive opening
With
Positive opening minimum force
42.5 N
Contacts insulation form
Zb
Contacts type and composition
2 x (1 NC + 1 NO)
Contact operation
Snap action
[Uimp] rated impulse withstand voltage
4 kV conforming to IEC 60664, 4 kV conforming to IEC 60947-1
[Ui] rated insulation voltage
300 V conforming to UL 508, 400 V (pollution degree 3) conforming to IEC 60947-1, 300 V conforming to CSA C22.2 No 14
[Ithe] conventional enclosed thermal current
3 A AC
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Electrical shock protection class
Class I conforming to IEC 61140, class I conforming to NF C 20-030
Short-circuit protection
6 A cartridge fuse, type gG
Width
30 mm
Depth
16 mm
IP degree of protection
IP66 conforming to IEC 60529, IP67 conforming to IEC 60529
Ambient air temperature for operation
-20…60 °C
Shock resistance
25 gn for 18 ms conforming to IEC 60068-2-27
Vibration resistance
5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Protective treatment
TC
Dust zone
Zone 21 - 22
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916058855
Package 1 height
23 cm
Package 1 width
5 cm
Package 1 length
19 cm
Package 1 weight
0.49 kg
Unit type of package 2
S02
Number of units in package 2
2
New Package 2 GTIN 14
13666916058852
Package 2 height
15 cm
Package 2 width
30 cm
Package 2 length
40 cm
Package 2 weight
1.435 kg
Unit type of package 3
BAG
Number of units in package 3
1
New Package 3 GTIN 14
23666916058859
Package 3 height
23 cm
Package 3 width
19 cm
Package 3 length
5 cm
Package 3 weight
0.49 kg
