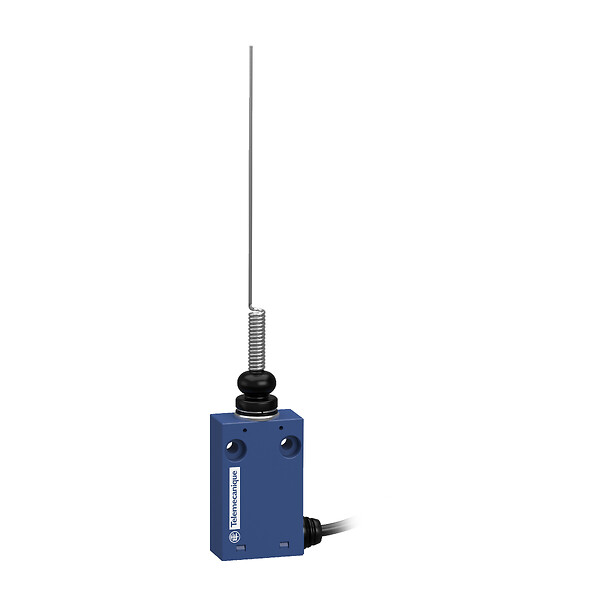

XCMH2106L1
Limit switch XCMH, plastic, cat's whisker, 1NC+1NO, snap action
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCMH
Sensor design
Miniature
ETIM classification
ETIM 9 - EC000030 - End switch
Body type
Fixed
Head type
Multi-directional head
Material
Plastic
Body material
Plastic
Head material
Zamak
Fixing mode
By the body
Movement of operating head
Multi-directional
Type of operator
Spring return cat''s whisker
Switch actuation
By any moving part
Type of approach
Multi-directional approach
Number of poles
2
Product certifications
CCC
CSA
UL
CSA
UL
Standards
CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
UL 508
IEC 60204-1
IEC 60947-5-1
UL 508
Indivisible sale quantity
1
Mechanical durability
5000000 cycles
Minimum force for tripping
0.1 N
Maximum actuation speed
1 m/s
Contact code designation
C300, AC-15 (Ue = 240 V), Ie = 0.75 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A
Electrical durability
5000000 cycles, DC-13, 120 V, 1 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, 24 V, 3 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, 48 V, 2 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Electrical connection
Fixed cable
Cable length
1 m
Cable composition
4 x 0.34 mm²
Wire insulation material
PvR
Positive opening
Without
Contacts insulation form
Zb
Contacts type and composition
1 NC + 1 NO
Contact operation
Snap action
[Uimp] rated impulse withstand voltage
4 kV conforming to IEC 60664, 4 kV conforming to IEC 60947-1
[Ui] rated insulation voltage
300 V (pollution degree 3) conforming to UL 508, 300 V (pollution degree 3) conforming to IEC 60947-5-1, 300 V (pollution degree 3) conforming to CSA C22.2 No 14
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Electrical shock protection class
Class II conforming to IEC 61140, class II conforming to NF C 20-030
Short-circuit protection
6 A cartridge fuse, type gG
Width
30 mm
Depth
16 mm
Product weight
0.08 kg
IK degree of protection
IK04 conforming to IEC 62262
IP degree of protection
IP66 conforming to IEC 60529, IP67 conforming to IEC 60529
Ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-40…70 °C
Shock resistance
25 gn for 18 ms conforming to IEC 60068-2-27
Vibration resistance
5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Protective treatment
TC
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
ID (Indonesia)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916051276
Package 1 height
2 cm
Package 1 width
14 cm
Package 1 length
19 cm
Package 1 weight
0.068 kg
Unit type of package 2
S02
Number of units in package 2
30
New Package 2 GTIN 14
13666916051273
Package 2 height
15 cm
Package 2 width
30 cm
Package 2 length
40 cm
Package 2 weight
2.61 kg
Unit type of package 3
P06
Number of units in package 3
480
New Package 3 GTIN 14
23666916051270
Package 3 height
75 cm
Package 3 width
60 cm
Package 3 length
80 cm
Package 3 weight
114.45 kg
Expand all
Technical Drawings

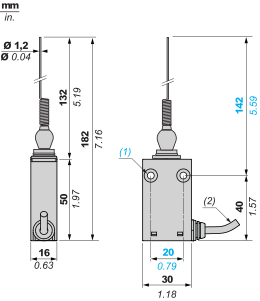

Dimensions
Dimensions
Mounting and Clearance
Mounting and Clearance
Mounting: distance required for connection
Mounting and Clearance
Sweep of Connecting Cable
Mounting and Clearance
Mounting with Spacers
Wiring diagram
Wiring diagram
2-pole NC + NO snap action
Characteristics of Actuation
Switch Actuation by Any Moving Part
Functional Diagram
Functional Diagram
