XCMH211AL05

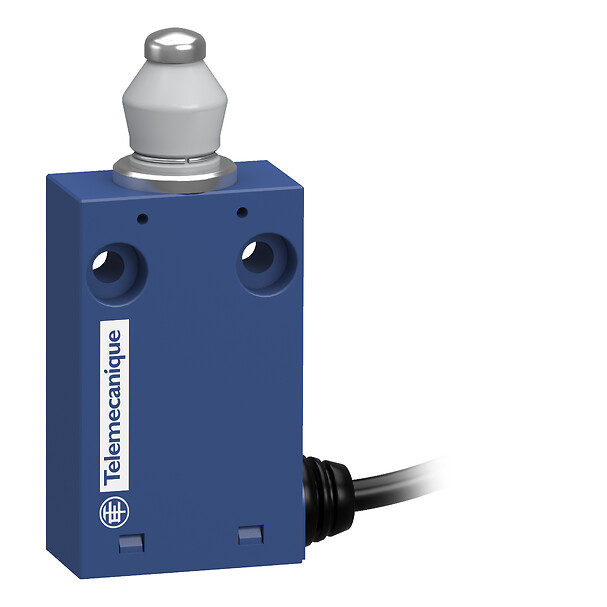

Limit switch XCMH, plastic, metal plunger with protective silicone boot, 1NC+1NO, snap action, 0.5 m cable
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCMH
Sensor design
Miniature
Body type
Fixed
Head type
Plunger head
Material
Plastic
Body material
Plastic
Head material
Zamak
Fixing mode
By the body
Movement of operating head
Rotary
Type of operator
Spring return roller lever thermoplastic
Type of approach
Lateral approach, 2 directions
Contacts type and composition
1 NC + 1 NO
Contact operation
Snap action
Tracks
24/31 mm
Switch actuation
By 30° cam
Electrical connection
Fixed cable
Cable composition
4 x 0.34 mm²
Wire insulation material
PvR
Contacts insulation form
Zb
Positive opening
With
Contact code designation
C300, AC-15 (Ue = 240 V), Ie = 0.75 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Shock resistance
25 gn for 18 ms conforming to IEC 60068-2-27
Vibration resistance
5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP66 conforming to IEC 60529, IP67 conforming to IEC 60529
IK degree of protection
IK04 conforming to IEC 62262
Electrical shock protection class
Class II conforming to IEC 61140, class II conforming to NF C 20-030
Protective treatment
TC
Product certifications
CCC
CSA
UL
CSA
UL
Standards
CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
UL 508
IEC 60204-1
IEC 60947-5-1
UL 508
Unit type of package 1
S03
Number of units in package 1
75
Package 1 height
30 CENTIMETER
Package 1 width
30 CENTIMETER
Package 1 length
40 CENTIMETER
Package 1 weight
8.33 KILOGRAM
Unit type of package 2
P06
Number of units in package 2
600
Package 2 height
75 CENTIMETER
Package 2 width
60 CENTIMETER
Package 2 length
80 CENTIMETER
Package 2 weight
138.21 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Dimensions
Mounting and Clearance
Mounting and Clearance
Mounting: distance required for connection
Mounting and Clearance
Sweep of Connecting Cable
Mounting and Clearance
Mounting with Spacers
Wiring diagram
Wiring diagram
2-pole NC + NO snap action
Characteristics of Actuation
Switch Actuation on End
Functional Diagram
Functional Diagram
