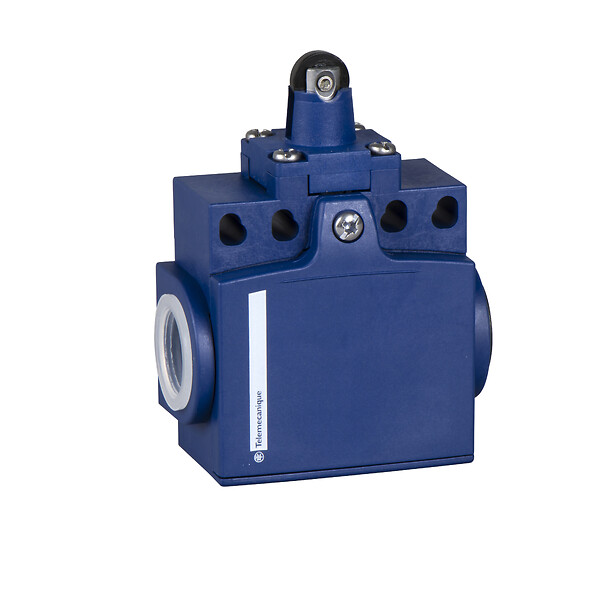

XCNT2102P16

Telemecanique Limit switches XC Standard

Standard format

Limit switch

XCNT

Compact

Fixed

Plunger head

Plastic

Plastic

Plastic

By the body

Linear

Spring return roller plunger plastic

Lateral approach, 2 directions

2 entries tapped for M16 x 1.5 cable gland, cable outer diameter: 7-13 mm

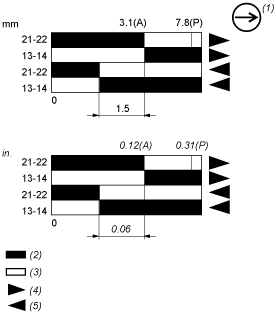

1 NC + 1 NO

Snap action

By 30° cam

Screw-clamp open terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²

Zb

A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A

50 gn for 11 ms conforming to IEC 60068-2-27

25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6

Class II conforming to IEC 61140, class II conforming to NF C 20-030

IP65 conforming to IEC 60529

IK04 conforming to IEC 62262

TC

CCC
CSA
UL

CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
UL 508

PCE

1

3.1 CENTIMETER

30 CENTIMETER

40 CENTIMETER

8.167 KILOGRAM

BB1

10

15 CENTIMETER

30 CENTIMETER

40 CENTIMETER

8.167 KILOGRAM

S03

80

30 CENTIMETER

30 CENTIMETER

40 CENTIMETER

8.194 KILOGRAM

10
