XCPR2502G13

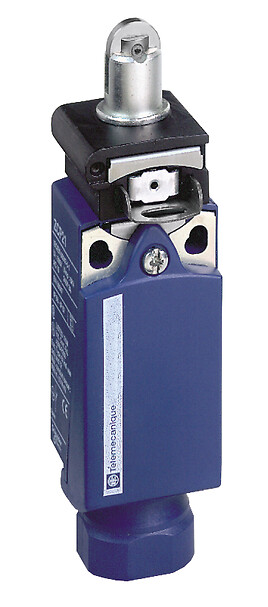

Limit switch XCPR, steel roller plunger, 1NC+1NO, Pg13 cable entry
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCPR
Sensor design
Compact
Device presentation
Complete product
ETIM classification
ETIM 9 - EC000030 - End switch
Body type
Fixed
Head type
Plunger head
Material
Plastic
Body material
Plastic
Head material
Zamak
Fixing mode
By the body
Movement of operating head
Linear
Type of operator
Spring return roller plunger metal
Switch actuation
By 30° cam
Type of approach
Lateral approach, 2 directions
Number of poles
2
Product certifications
CSA
UL
UL
Standards
CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
UL 508
IEC 60204-1
IEC 60947-5-1
UL 508
Indivisible sale quantity
1
Minimum force for tripping
12 N
Maximum actuation speed
0.5 m/s
Reset
With
Cable entry
1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9-12 mm
Contact code designation
A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
Electrical durability
5000000 cycles, DC-13, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
Positive opening
With
Positive opening minimum force
36 N
Contacts insulation form
Zb
Contacts type and composition
1 NC + 1 NO
Terminals description ISO n°1
(13-14)NO
(21-22)NC
(21-22)NC
Contact operation
Slow-break, break before make
[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60664, 6 kV conforming to IEC 60947-1
[Ui] rated insulation voltage
300 V conforming to UL 508, 500 V (pollution degree 3) conforming to IEC 60947-1, 300 V conforming to CSA C22.2 No 14
Overvoltage category
Class II conforming to IEC 61140, class II conforming to NF C 20-030
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Short-circuit protection
10 A cartridge fuse, type gG
Width
31 mm
Depth
30 mm
Product weight
0.115 kg
IK degree of protection
IK04 conforming to IEC 62262
IP degree of protection
IP66 conforming to IEC 60529, IP67 conforming to IEC 60529
Ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-40…70 °C
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Protective treatment
TC
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916050101
Package 1 height
11.8 cm
Package 1 width
3.1 cm
Package 1 length
3.1 cm
Package 1 weight
0.116 kg
Unit type of package 2
S02
Number of units in package 2
14
New Package 2 GTIN 14
13666916050108
Package 2 height
15 cm
Package 2 width
30 cm
Package 2 length
40 cm
Package 2 weight
1.624 kg
Unit type of package 3
CAR
Number of units in package 3
1
New Package 3 GTIN 14
23666916050105
Package 3 height
3.1 cm
Package 3 width
11.8 cm
Package 3 length
3.1 cm
Package 3 weight
0.116 kg
Expand all
Technical Drawings

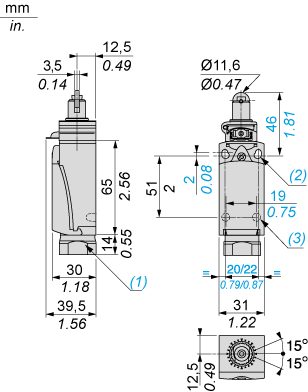

Dimensions
- (1) Tapped entry for Pg 13.5 cable gland
- (2) 2 elongated holes Ø 4.3 x 6.3 mm on 22 mm centres, 2 holes Ø 4.3 on 20 mm centres.
- (3) 2 x Ø 3 holes for support studs, depth 4 mm
Mounting with Cable Entry
Position of Cable Gland
- (1) Recommended
- (2) To be avoided
Wiring Diagrams
2-pole N/C + N/O Break before Make, Slow Break
Characteristics of Actuation
Switch Actuation by 30° Cam
Functionnal Diagram
- (P) Positive opening point
- (A) Cam displacement
- (1) NC contact with positive opening operation
- (2) Closed
- (3) Open
