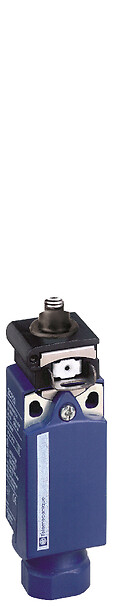

XCPR2908P20

Telemecanique Limit switches XC Standard

Standard format

Limit switch

XCPR

Compact

With

Fixed

Multi-directional head

Plastic

Plastic

Zamak

By the body

Multi-directional

Spring return spring rod with nitrile boot

Multi-directional approach

1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 7-13 mm

1 NC + 1 NC

Snap action

By any moving part

Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²

Zb

Without

0.1 mm on the tripping points with 1 million operating cycles

A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A

25 MOhm conforming to IEC 60255-7 category 3

(11-12)NC
(21-22)NC

50 gn for 11 ms conforming to IEC 60068-2-27

25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6

IP66 conforming to IEC 60529, IP67 conforming to IEC 60529

IK04 conforming to IEC 62262

Class II conforming to IEC 61140, class II conforming to NF C 20-030

TC

CSA
UL

CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
UL 508

PCE

1

19.3 CENTIMETER

6 CENTIMETER

5.5 CENTIMETER

0.137 KILOGRAM

15 CENTIMETER

15 CENTIMETER

40 CENTIMETER

1.9 KILOGRAM

1
