XCPR2918P20

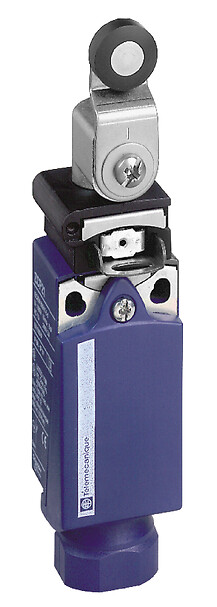

Limit switch, Limit switches XC Standard, XCPR, thermoplastic roller lever, 2NC, snap, M20

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCPR
Sensor design
Compact
Reset
With
Body type
Fixed
Head type
Rotary head
Material
Plastic
Body material
Plastic
Head material
Zamak
Fixing mode
By the body
Movement of operating head
Rotary
Type of operator
Spring return roller lever thermoplastic
Type of approach
Lateral approach, 2 directions
Cable entry
1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 7-13 mm
Contacts type and composition
1 NC + 1 NC
Contact operation
Snap action
Tracks
24/40 mm
Switch actuation
By 30° cam
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Contacts insulation form
Zb
Positive opening
With
Contact code designation
A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Terminals description ISO n°1
(11-12)NC
(21-22)NC
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP66 conforming to IEC 60529, IP67 conforming to IEC 60529
IK degree of protection
IK04 conforming to IEC 62262
Overvoltage category
Class II conforming to IEC 61140, class II conforming to NF C 20-030
Protective treatment
TC
Product certifications
CSA
UL
Standards
CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
UL 508
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
19.3 CENTIMETER
Package 1 width
5.5 CENTIMETER
Package 1 length
6 CENTIMETER
Package 1 weight
0.137 KILOGRAM
Unit type of package 2
S03
Number of units in package 2
40
Package 2 height
30 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
6.193 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
19.3 CENTIMETER
Package 3 width
6 CENTIMETER
Package 3 length
5.5 CENTIMETER
Package 3 weight
0.137 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

Technical Drawings

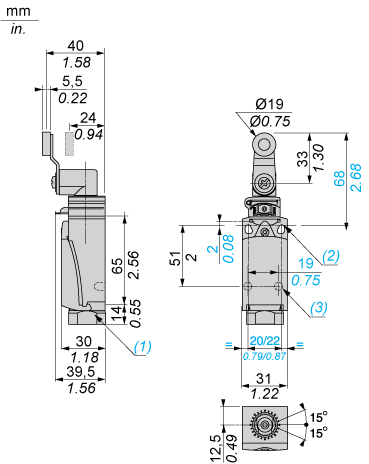

Dimensions

epds
  • (1) Tapped entry for M20 x 1.5
  • (2) 2 elongated holes Ø 4.3 x 6.3 mm on 22 mm centres, 2 holes Ø 4.3 on 20 mm centres.
  • (3) 2 x Ø 3 holes for support studs, depth 4 mm

Mounting with Cable Entry

Position of Cable Gland

epds
  • (1) Recommended
  • (2) To be avoided

Mounting with Rotary Heads and Levers

Type of Cam

epds
  • (1) Recommended
  • (2) To be avoided

Setting-up with Head ZCE01 and ZCE09

epds
  • (1) Tightening torque (Min : 1) (Max : 1.5)
  • (2) Tightening torque (Min : 0.8) (Max : 1.2)

Wiring Diagrams

2-pole NC + NC Snap Action

epds

Characteristics of Actuation

Switch Actuation by 30° Cam

epds

Functionnal Diagram

epds
  • (P) Positive opening point
  • (1) NC contact with positive opening operation
  • (2) Closed
  • (3) Open
  • (4) Tripping
  • (5) Resetting
