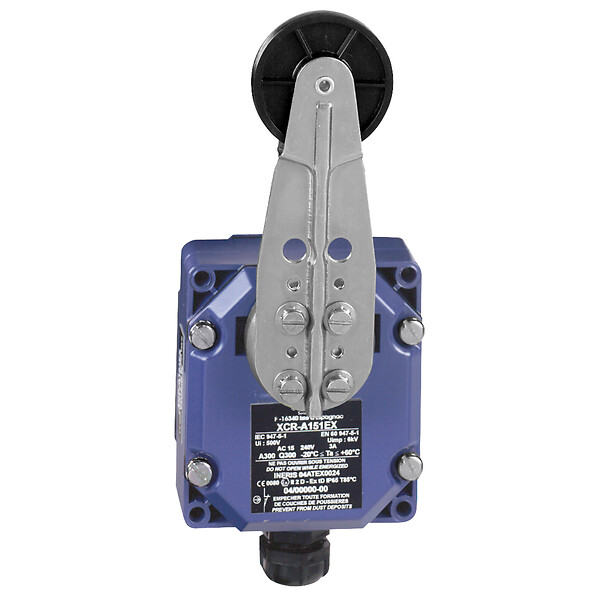

XCRA121EX

OsiSense ATEX D

Special format

Limit switch

For hoisting and mechanical handling applications

XCR

Fixed

Rotary head

Metal

By the body

Rotary

Spring return roller lever thermoplastic

By any moving part

Lateral approach, 2 directions

Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²

2 x (1 NC + 1 NO)

Zb

Snap action

2 per direction

With

IP65 conforming to IEC 60529

A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1, A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A

25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A

II2 D-Ex tb IIIC T85°C Db IP66/67

68 gn conforming to IEC 60068-2-27

9 gn (f= 10-500 Hz) conforming to IEC 60068-2-6

Class I conforming to IEC 60536, class I conforming to NF C 20-030

TC

Zone 21 - 22

IEC-Ex INE 16.0048X
INERIS 04ATEX0014X

IEC 60079-0
IEC 60079-31

2014/34/EU - ATEX directive

PCE

1

20.5 CENTIMETER

10.5 CENTIMETER

8.1 CENTIMETER

1.074 KILOGRAM

1
