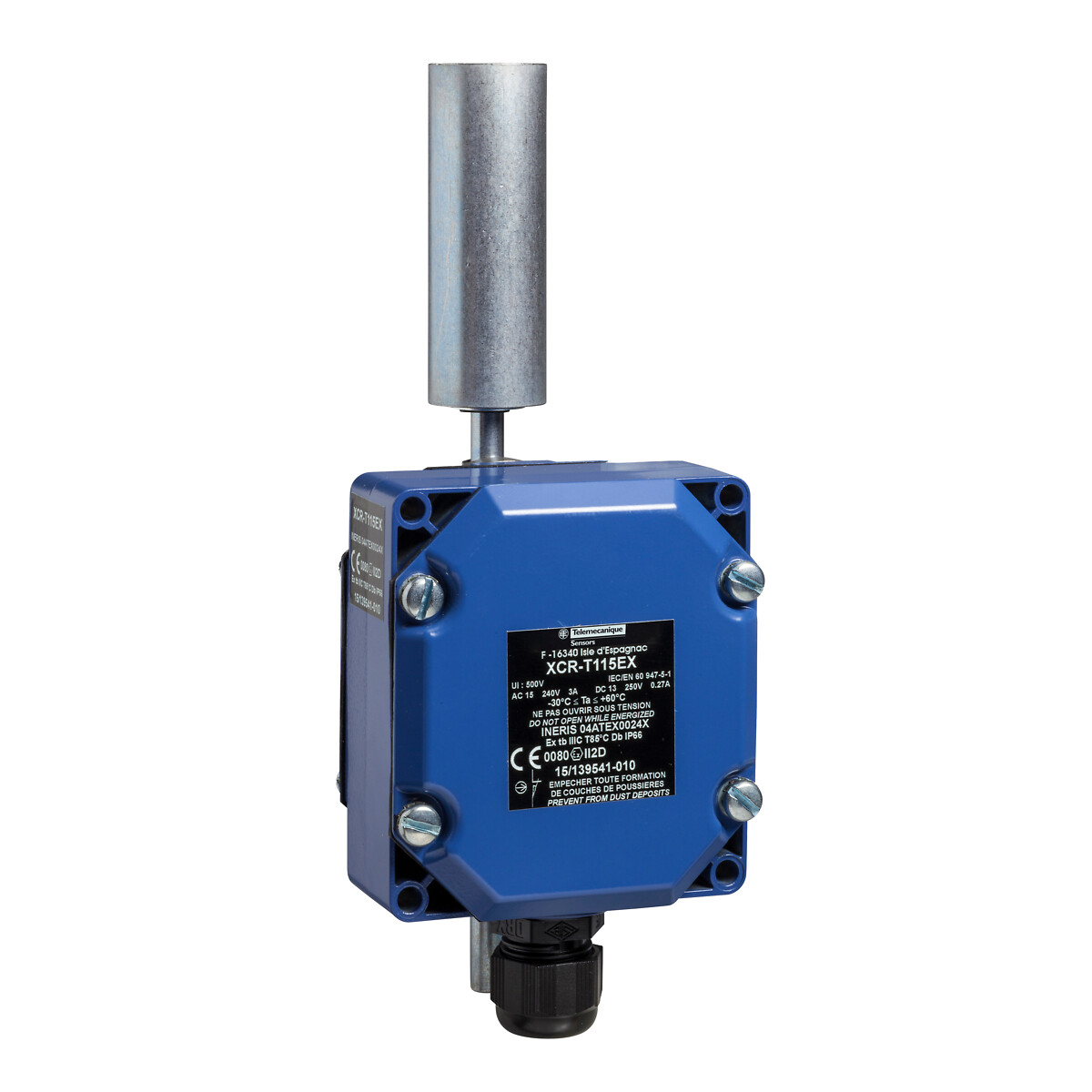

XCRT215EX

Limit switch, Limit switches XC Standard, XCR, roller lever, 2 C/O, ATEX/IECEx

arrow

Commercialised

Expand all

Datasheet

Range of product
OsiSense ATEX D
Series name
Special format
Product or component type
Limit switch
Product specific application
For conveyor belt shift monitoring
Device short name
XCR
Body type
Fixed
Head type
Rotary head
Material
Metal
Fixing mode
By the body
Movement of operating head
Rotary
Type of operator
Spring return roller stainless steel with lever
Switch actuation
By conveyor belt
Type of approach
Lateral approach, 2 directions
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
Contacts type and composition
2 x 1 C/O
Contacts insulation form
Za
Contact operation
Snap action
Contact block per direction [control circuit]
1 per direction
Positive opening
With
IP degree of protection
IP65 conforming to IEC 60529
Body material
Zinc alloy
Contact code designation
A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1, A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A
Marking
II2 D-Ex tb IIIC T85°C Db IP66/67
Shock resistance
30 gn for 18 ms conforming to IEC 60068-2-27
Vibration resistance
9 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Electrical shock protection class
Class I conforming to IEC 60536, class I conforming to NF C 20-030
Protective treatment
TC
Dust zone
Zone 21 - 22
Product certifications
IEC-Ex INE 16.0048X
INERIS 04ATEX0014X
Standards
IEC 60079-0
IEC 60079-31
Directives
2014/34/EU - ATEX directive
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S03
Number of units in package 2
6
Package 2 height
30 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
8.07 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

Technical Drawings

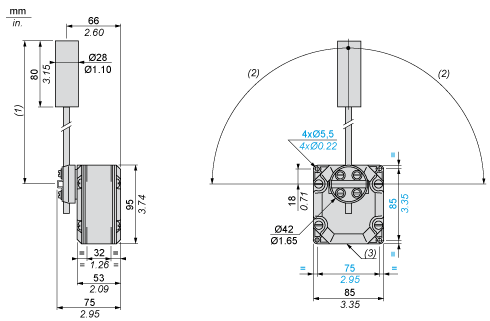

Dimensions

epds
  • (1) 200 mm max. 104 mm min.
  • (2) 90° max.
  • (3) 1 tapped entry for Pg 13.5 cable gland

Wiring Diagram

2 Single-pole CO Snap Action

epds
  • (A) 1 contact
  • (B) 2 contact

Wiring Diagram

2 Single-pole CO Snap Action

epds
  • (A) 1 contact
  • (B) 2 contact
  • (A) 1 contact
  • (B) 2 contact

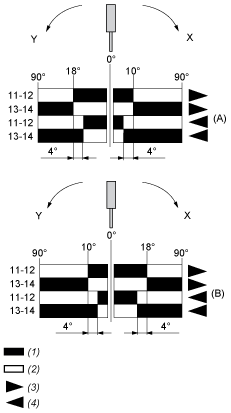

Functionnal Diagram

epds
  • (A) 1st contact
  • (B) 2nd contact
  • (1) Closed
  • (2) Open
  • (3) Tripping
  • (4) Resetting
