XCRZ03R

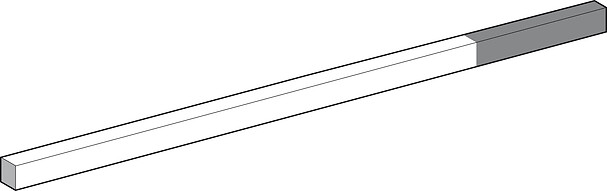

Limit switch lever XCRZ, steel square rod 6 mm, 200 mm

arrow

COMMERCIALISED

Expand all

Datasheet

Range of product
OsiSense XC
Series name
Special format
Product or component type
Limit switch lever
Device short name
XCRZ
ETIM classification
ETIM 9 - EC001483 - Drive head for position switches/hinge switches
Movement of operating head
Rotary
Type of operator
Square rod metal square rod 6 mm, L = 200 mm with red end
Switch actuation
By any moving part
Type of approach
Lateral approach
Product compatibility
XCKMR
XCKVR
XCRA
XCRB
Indivisible sale quantity
1
Positive opening
With, conforming to IEC 60947-5-1 Annex K
Product weight
0.019 kg
Ambient air temperature for operation
-25…70 °C
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916039236
Package 1 height
20 cm
Package 1 width
0.8 cm
Package 1 length
0.8 cm
Package 1 weight
0.02 kg
Unit type of package 2
S01
Number of units in package 2
50
New Package 2 GTIN 14
13666916039233
Package 2 height
15 cm
Package 2 width
15 cm
Package 2 length
40 cm
Package 2 weight
1.29 kg
Unit type of package 3
S02
Number of units in package 3
18
New Package 3 GTIN 14
23666916039230
Package 3 height
15 cm
Package 3 width
40 cm
Package 3 length
30 cm
Package 3 weight
8.874 kg
