XCSDMR590L01M12

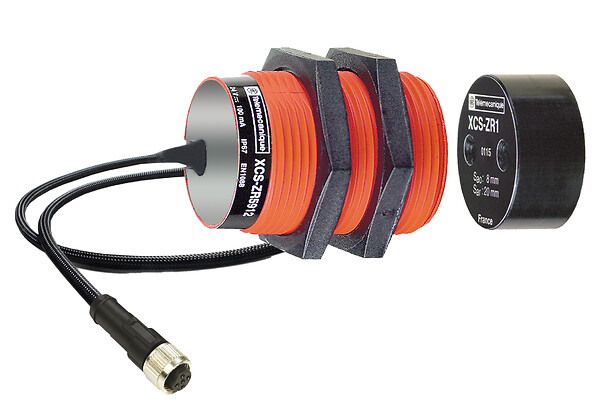

Coded magnetic switch, Telemecanique Safety switches XCS, XCSDMR, 1 NC + 1 NO, staggered, M12 0.15 m
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Safety switches XCS
Product or component type
Coded magnetic switch
Component name
XCSDMR
Design
Cylindrical
Size
Ø 30 x 38.5 mm
Contacts type and composition
1 NC + 1 NO
Contact operation
Staggered
Material
Plastic
Electrical connection
Connector on flying lead
Connector type
M12
Approach directions
1 direction
[Ue] rated operational voltage
24 V DC
[Ie] rated operational current
100 MILLIAMPERE
Contacts material
Rhodium
Switching capacity in mA
0.1...100 mA
Insulation resistance
1000 MOhm
Switching frequency
150 Hz
Safety level
Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508
Safety reliability data
B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear
Enclosure material
Thermoplastic PBT
Cable material
PVC
Standards
CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
ISO 12100
ISO 14119
UL 508
IEC 60204-1
IEC 60947-5-1
ISO 12100
ISO 14119
UL 508
Product certifications
CSA
UL
UL
Protective treatment
TH
Vibration resistance
10 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Sensitivity to magnetic fields
0.3 MILLITESLA
Electrical shock protection class
Class II conforming to IEC 61140
IP degree of protection
IP67 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
40
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.9 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
