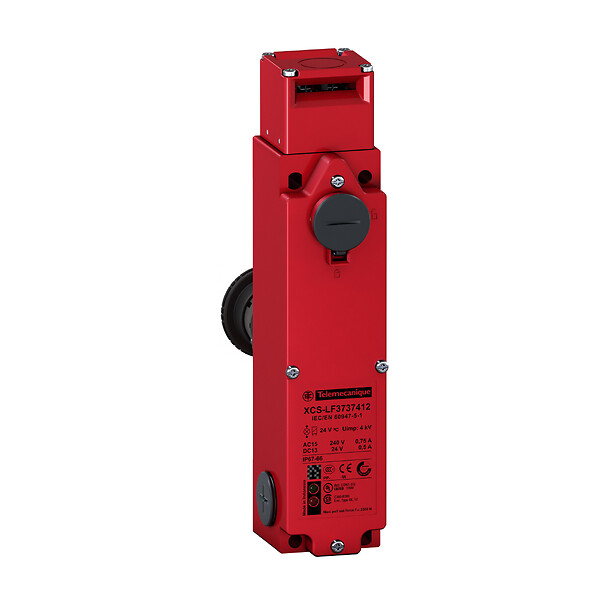

Safety switch, Telemecanique Safety switches XCS, metal XCSLF, 4 NC+2 NO, slow break, 3 entries tapped M20, 24 V
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Safety switches XCS
Product or component type
Safety switch
Component name
XCSLF
Design
Slim
Material
Metal
Head type
Key operated turret head
Contacts type and composition
2 NC + 1 NO
Solenoid contacts type and composition
2 NC + 1 NO (slow-break, break before make)
Cable entry
3 entries tapped for M20 x 1.5
Electromagnet interlocking
By mushroom head push-button turn to release for escape release
locking on de-energisation and unlocking on energisation of solenoid
locking on de-energisation and unlocking on energisation of solenoid
[Us] rated supply voltage
24 V - 15...10 %
Electrical connection
Spring terminal, clamping capacity: 1 x 1.5 mm² flexible or solid cable, spring terminal, clamping capacity: 2 x 0.5 mm² flexible cables with 13 mm bared ends
Local signalling
1 LED (orange) for actuator withdrawn, 1 LED (green) for actuator inserted and locked
Signalling circuit voltage
24 V
Contact operation
Slow-break, break before make
Locking options description
With interlocking, locking by solenoid
Positive opening
With NC contact
Supply voltage type
AC/DC
Supply frequency
50/60 Hz
Signalling circuit type
AC/DC
Maximum load current
<= 15 A
Actuator forcible withdrawal rtc
3000 NEWTON
Actuator force for extraction
20 NEWTON
Operating rate
10 cyc/mn for maximum durability
Safety level
Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 conforming to IEC 61508
Safety reliability data
B10d = 5500000 value given for a life time of 20 years limited by mechanical or contact wear
Body material
Zamak
Head material
Zamak
Standards
CSA C22.2 No 14
EN 1088/ISO 14119
IEC 60204-1
IEC 60947-5-1
IEC 62061
ISO 13849-1
UL 508
EN 1088/ISO 14119
IEC 60204-1
IEC 60947-5-1
IEC 62061
ISO 13849-1
UL 508
Product certifications
CSA
TÜV
UL
TÜV
UL
Protective treatment
TC
Vibration resistance
5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance
10 gn for 11 ms conforming to IEC 60068-2-27
Electrical shock protection class
Class I conforming to IEC 61140
IP degree of protection
IP66 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
5.8 CENTIMETER
Package 1 width
14.5 CENTIMETER
Package 1 length
22.5 CENTIMETER
Package 1 weight
1.406 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
4
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
5.776 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
22.5 CENTIMETER
Package 3 width
5.8 CENTIMETER
Indivisible sale quantity
1
Package 3 length
14.5 CENTIMETER
Package 3 weight
1.406 KILOGRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
