XCSM3910L1

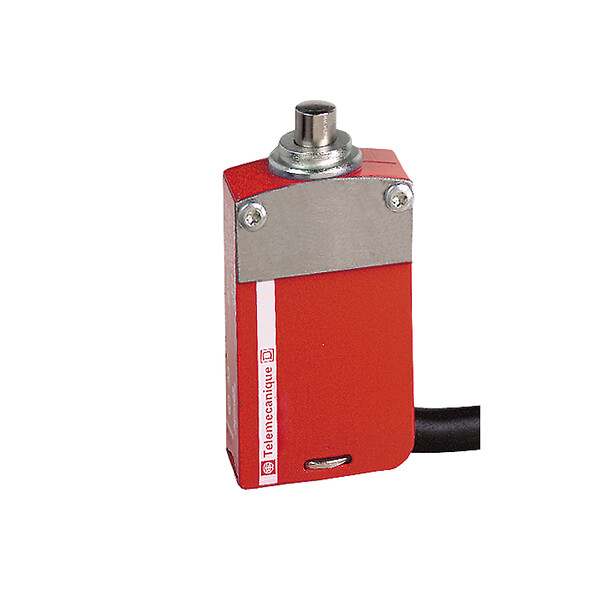

Safety limit switch, Telemecanique Safety switches XCS, XCSM, metal, steel plunger, 2 NC + 1 NO, cable 1 m
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Safety switches XCS
Product or component type
Safety limit switch
Component name
XCSM
Design
Miniature
Material
Metal
Head type
Plunger head
Protection technology
Plastic protective cover, secured by 5-lobe socket head safety screw
Type of approach
On end approach
Type of operator
Metal end plunger
Contact operation
Snap action
Contacts type and composition
1 NC + 1 NC + 1 NO
Cable composition
7 x 0.5 mm²
Electrical connection
Pre-cabled
Positive opening
With NC contact
Fixing mode
By the body
Contact code designation
B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to IEC 60947-5-1, B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to IEC 60947-5-1, R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to IEC 60947-5-1 appendix A
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Repeat accuracy
0.05 mm on the tripping points
Safety level
Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508
Body material
Zamak
Head material
Zamak
Safety reliability data
B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear
Protective treatment
TC
Product certifications
CSA
UL
UL
Electrical shock protection class
Class I, class I conforming to IEC 61140
Standards
CSA C22.2 No 14
EN 1088
IEC 60204-1
IEC 60947-5-1
UL 508
EN 1088
IEC 60204-1
IEC 60947-5-1
UL 508
Vibration resistance
5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance
25 gn for 18 ms conforming to IEC 60068-2-27
IK degree of protection
IK06 conforming to IEC 62262
IP degree of protection
IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP68 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2 CENTIMETER
Package 1 width
14 CENTIMETER
Package 1 length
13 CENTIMETER
Package 1 weight
0.195 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
20
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
11.025 KILOGRAM
Unit type of package 3
S03
Number of units in package 3
55
Package 3 height
30 CENTIMETER
Package 3 width
30 CENTIMETER
Package 3 length
40 CENTIMETER
Package 3 weight
11.438 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
