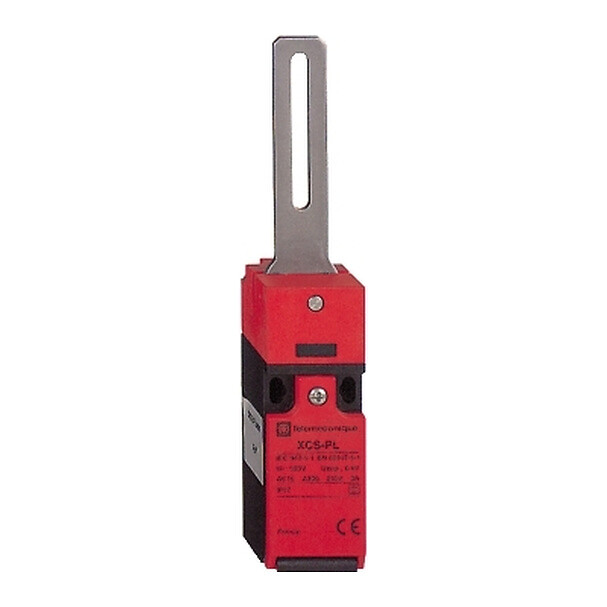

XCSPL1587872

Telemecanique Safety switches XCS

Safety switch

XCSPL

Compact

Plastic

Key operated turret head

2 NC + 1 NO

Slow-break, break before make

1 entry tapped for 1/2" NPT

Terminal, clamping capacity: 1 x 0.34...2 x 0.75 mm²

Without locking of actuator

With NC contact

Double insulated

10 cyc/mn for maximum durability

Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508

PA (polyamide)

PA (polyamide)

B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear

TC

CSA
UL

Class II conforming to IEC 61140

CSA C22.2 No 14
EN 1088/ISO 14119
IEC 60204-1
IEC 60947-5-1
ISO 12100
UL 508

5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6

10 gn for 11 ms conforming to IEC 60068-2-27

IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1

PCE

1

3.2 CENTIMETER

20 CENTIMETER

3.8 CENTIMETER

125 GRAM

1
