XCSPL552

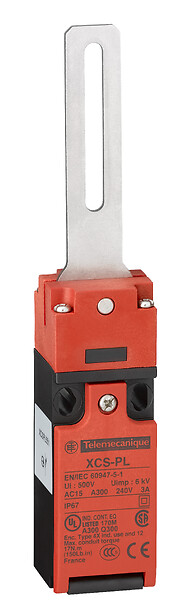

Guard switch, Telemecanique Safety switches XCS, XCSPL, straight lever, centred, 1NC+1 NO, M16
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Safety switches XCS
Product or component type
Guard switch
Component name
XCSPL
Material
Plastic
Head type
Turret head rotary lever
Insulation
Double insulated
Type of operator
Straight lever
Operator direction information
Centred
Electrical connection
Terminal
Contacts type and composition
1 NC + 1 NO
Contact operation
Slow-break, break before make
Clamping connection capacity
1 x 0.5...2 x 1.5 mm² with or without cable end
Cable entry
1 entry tapped for M16 x 1.5
Positive opening
With NC contact
Contact code designation
A300, AC-15 (Ue = 120 V, Ie = 6 A) conforming to IEC 60947-5-1, A300, AC-15 (Ue = 240 V, Ie = 3 A) conforming to IEC 60947-5-1, Q300, DC-13 (Ue = 125 V, Ie = 0.55 A) conforming to IEC 60947-5-1, Q300, DC-13 (Ue = 250 V, Ie = 0.27 A) conforming to IEC 60947-5-1
Resistance across terminals
30 mOhm conforming to IEC 60947-5-4
Safety level
Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508
Safety reliability data
B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear
Enclosure material
Polyamide PA66 fibre glass impregnated
Lever material
Stainless steel
Standards
CSA C22.2 No 14
EN 1088/ISO 14119
IEC 60204-1
IEC 60947-5-1
IEC 60947-5-4
ISO 12100
UL 508
EN 1088/ISO 14119
IEC 60204-1
IEC 60947-5-1
IEC 60947-5-4
ISO 12100
UL 508
Product certifications
BG
CSA
UL
CSA
UL
Protective treatment
TC
TH
TH
Vibration resistance
50 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Electrical shock protection class
Class II conforming to IEC 61140
IP degree of protection
IP67 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.2 CENTIMETER
Package 1 width
20 CENTIMETER
Package 1 length
3.8 CENTIMETER
Package 1 weight
0.125 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
12
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.663 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
