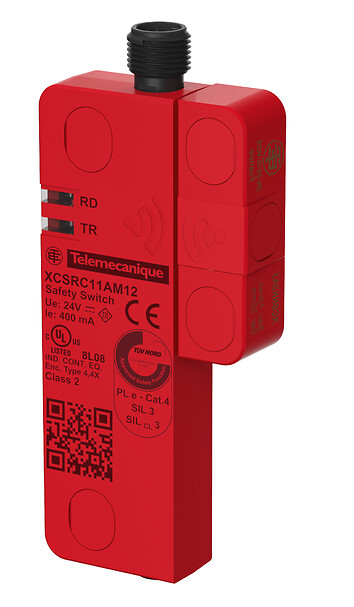

XCSRC11AM12
Preventa RFID safety switch, Telemecanique Safety switches XCS, contactless Standalone model EDM+Auto Start Unique pairing
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Safety switches XCS
Product or component type
Preventa RFID safety switch
Component name
XCSRC
Design
Rectangular, standard
Size
Transponder: 50 x 15 x 15 mm, reader: 108.3 x 30 x 15 mm
Material
Valox
Electrical connection
1 male connector
Connector type
M12 male
Type of output stage
Solid-state, PNP
Safety outputs
2 NO
Local signalling
Green, orange and red 2 multi-colour LEDs
Approach directions
3 directions-transponder with rotary sensing face
[Ue] rated operational voltage
24 V DC (- 20...10 %)SELV or PELV conforming to IEC 60204-1
Protection type
Short-circuit protection
Switching capacity in mA
400 mA
Switching frequency
<= 0.5 Hz
Discordance time
120 ms
Response time
250 ms typical
Delay first up
5 SECOND
Tightening torque
< 1.5 N.m
Standards
IEC 60947-5-2
IEC 60947-5-3
ISO 14119
IEC 60947-5-3
ISO 14119
Product certifications
CSA 22-2
E2
Ecolab
FCC
IC
RCM
TÜV
E2
Ecolab
FCC
IC
RCM
TÜV
Marking
CE
cULus
EAC
FCC
IC
RCM
TÜV
cULus
EAC
FCC
IC
RCM
TÜV
Safety level
SIL 3 conforming to IEC 61508, SILCL 3 conforming to IEC 62061, PL = e conforming to ISO 13849-1, category 4 conforming to ISO 13849-1
Safety reliability data
PFHD = 5E-10/h conforming to IEC 62061, PFHD = 5E-10/h conforming to ISO 13849-1
Vibration resistance
10 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Electrical shock protection class
Class III conforming to IEC 61140
IP degree of protection
IP65 conforming to IEC 60529, IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69K conforming to DIN 40050
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2.8 CENTIMETER
Package 1 width
14.7 CENTIMETER
Package 1 length
17.9 CENTIMETER
Package 1 weight
0.104 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
12
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.431 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Connections
M12 Connector, 8-pin
- (1) + 24 VDC
- (2) OSSD2
- (3) 0 VDC
- (4) OSSD1
- (5) EDM_ST_1
- (6) EDM_ST_2
- (7) NC (Not connected)
- (8) NC (Not connected)
Connections
Wiring Diagram
- (1) Power Supply
- (2) Reader
- (3) Transponder
- (4) 1 A max.
- (5) Restart
- (6) Use of arc suppressors for KM1 and KM2 is recommended.
- (7) Power circuit
Mounting and Clearance
Mounting and Clearance
Face to Face Mounting (Preferred Configuration)
- e min. > 2 mm. (e: recommended minimum mounting distance between transponder and reader)
- d : Detection limit
Mounting and Clearance
Side by Side Mounting
- e: Recommended minimum mounting distance between transponder and reader.
Mounting and Clearance
Minimum Mounting Clearances between Safety Switches
Detection Curves
Face to Face Mounting (Preferred Configuration)
- Sar: Assured release distance
- Sao: Assured operating distance
- (1) Recommended minimum mounting distance between transponder and reader.
Detection Curves
- Sar: Assured release distance
- Sao: Assured operating distance
- (1) Recommended minimum mounting distance between transponder and reader.
- Sar: Assured release distance
- Sao: Assured operating distance
- (1) Recommended minimum mounting distance between transponder and reader.
Detection Curves
Side by Side Mounting
- Sar: Assured release distance
- Sao: Assured operating distance
- (1) X=0 for X<0
- (2) X=0 for X>0
- (3) Recommended minimum mounting distance between transponder and reader.
Detection Curves
- Sar: Assured release distance
- Sao: Assured operating distance
- (1) X=0 for X<0
- (2) X=0 for X>0
- (3) Recommended minimum mounting distance between transponder and reader.
- Sar: Assured release distance
- Sao: Assured operating distance
- (1) X=0 for X<0
- (2) X=0 for X>0
- (3) Recommended minimum mounting distance between transponder and reader.
