XCSRM10L10

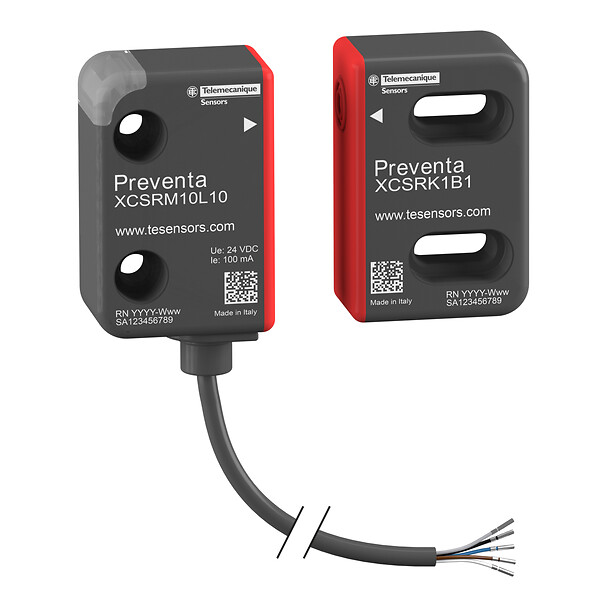

Miniature Safety RFID switch, unique pairing, single model, 5-pin, 10m cable

arrow

Commercialised

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
Telemecanique Safety switches XCS
Product or component type
Preventa RFID safety switch
Component name
XCSRM
Design
Miniature
Size
Switch: 42 x 28.5 x 18 mm actuator: 42 x 28.5 x 18 mm
Material
Plastic
Type of output stage
Solid-state, PNP
Safety outputs
2 NO
Local signalling
Green, yellow and red 1 multi-colour LED
[Ue] rated operational voltage
24 V DC (- 20...20 %) SELV or PELV conforming to IEC 60204-1
Protection type
Short-circuit protection
Switching capacity in mA
300 mA
Switching frequency
<= 1 Hz
Response time
<55 ms +12 ms per switch in daisy-chain (Risk time according to IEC 60947-5-3)
Tightening torque
0.8...1.2 N.m
Standards
IEC 60947-5-2
IEC 60947-5-3
ISO 14119
Product certifications
Ecolab
TÜV
Marking
CE
TÜV
UKCA
Safety level
SIL 3 conforming to IEC 61508 SILCL 3 conforming to IEC 62061 PL = e conforming to ISO 13849-1 category 4 conforming to ISO 13849-1
Safety reliability data
PFHd = 2.62E-9 1/h conforming to IEC 62061 PFHd = 2.62E-9 1/h conforming to ISO 13849-1
Vibration resistance
+/- 1 mm (f= 10-55Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn for 11ms conforming to IEC 60068-2-27
Electrical shock protection class
Class III conforming to IEC 61140
IP degree of protection
IP65 conforming to IEC 60529 IP67 conforming to IEC 60529 IP69K conforming to DIN 40050
Package 1 height
20 CENTIMETER
Package 1 width
5 CENTIMETER
Package 1 length
16 CENTIMETER
Package 1 weight
586 KILOGRAM
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.644 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
