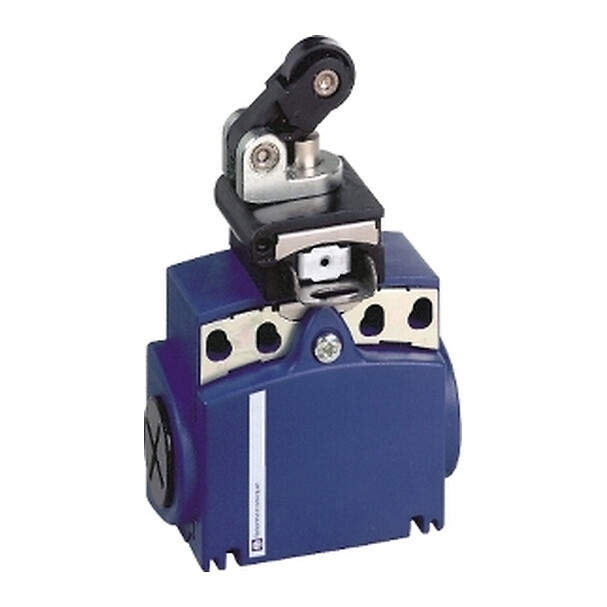

XCTR2121P16

Telemecanique Limit switches XC Standard

Standard format

Limit switch

XCTR

Compact

With

Fixed

Plunger head

Plastic

Plastic

Zamak

By the body

Linear

Spring return roller lever plunger thermoplastic

Lateral approach, 1 direction

2 entries tapped for M16 x 1.5 cable gland, cable outer diameter: 4-8 mm

1 NC + 1 NO

Snap action

By 30° cam

Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²

Zb

With

A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A

25 MOhm conforming to IEC 60255-7 category 3

(13-14)NO
(21-22)NC

50 gn for 11 ms conforming to IEC 60068-2-27

25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6

IP66 conforming to IEC 60529, IP67 conforming to IEC 60529

IK04 conforming to IEC 62262

Class II conforming to IEC 61140, class II conforming to NF C 20-030

TC

CSA
UL

CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
UL 508

PCE

1

11.4 CENTIMETER

5.2 CENTIMETER

6.3 CENTIMETER

0.133 KILOGRAM

CAR

1

11.4 CENTIMETER

6.3 CENTIMETER

5.2 CENTIMETER

0.133 KILOGRAM
