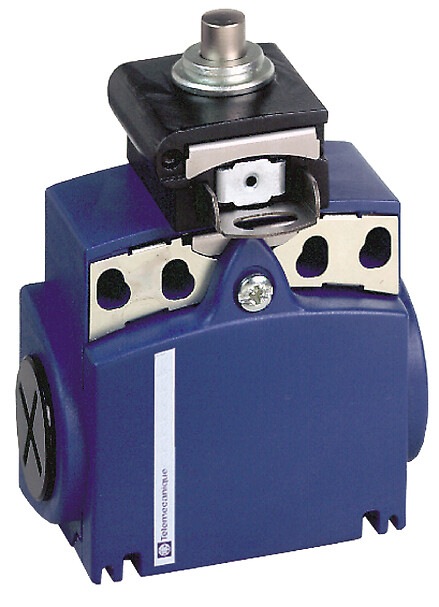

XCTR2510G11

Telemecanique Limit switches XC Standard

Standard format

Limit switch

XCTR

Compact

With

Fixed

Plunger head

Plastic

Plastic

Zamak

By the body

Linear

Spring return plunger metal

Vertical approach, 1 direction

2 entries tapped for Pg 11 cable gland

1 NC + 1 NO

Slow-break, break before make

On end

Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²

Zb

With

A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A

25 MOhm conforming to IEC 60255-7 category 3

(13-14)NO
(21-22)NC

50 gn for 11 ms conforming to IEC 60068-2-27

25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6

IP66 conforming to IEC 60529, IP67 conforming to IEC 60529

IK04 conforming to IEC 62262

Class II conforming to IEC 61140, class II conforming to NF C 20-030

TC

CSA
UL

CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
UL 508

PCE

1

11.4 CENTIMETER

5.2 CENTIMETER

6.3 CENTIMETER

0.119 KILOGRAM

CAR

1

11.4 CENTIMETER

6.3 CENTIMETER

5.2 CENTIMETER

0.119 KILOGRAM

1

WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
