XE2SP3158

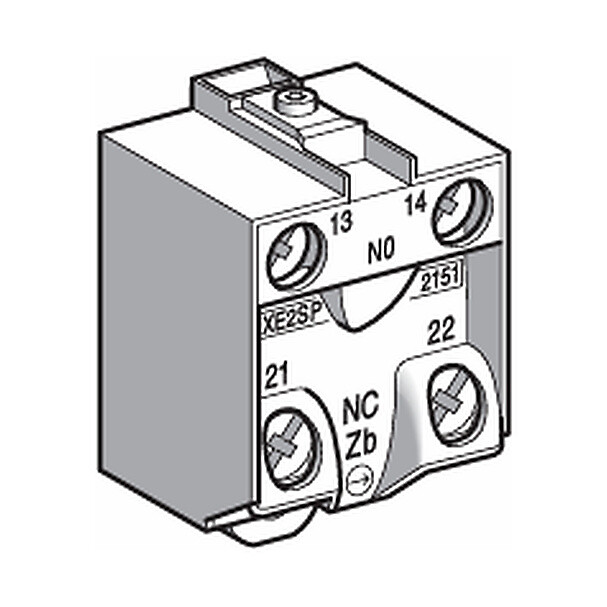

Limit switch contact block XE2SP, 1NC+1NO, snap action, gold-flashed contacts
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch contact block
Device short name
XE2S
Contacts type and composition
1 NO + 1 NC
Contact operation
Snap action
Product compatibility
XCKT
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Contacts insulation form
Zb
Contacts material
Gold flashed contacts
Positive opening
With
Contact code designation
A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
Resistance across terminals
25 mOhm conforming to IEC 60255-7 category 3
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
12.5 CENTIMETER
Package 1 width
2.5 CENTIMETER
Package 1 length
10 CENTIMETER
Package 1 weight
0.021 KILOGRAM
Unit type of package 2
CAR
Number of units in package 2
1
Package 2 height
12.5 CENTIMETER
Package 2 width
10 CENTIMETER
Package 2 length
2.5 CENTIMETER
Package 2 weight
0.021 KILOGRAM
Indivisible sale quantity
1
