XEP3S1W6B529

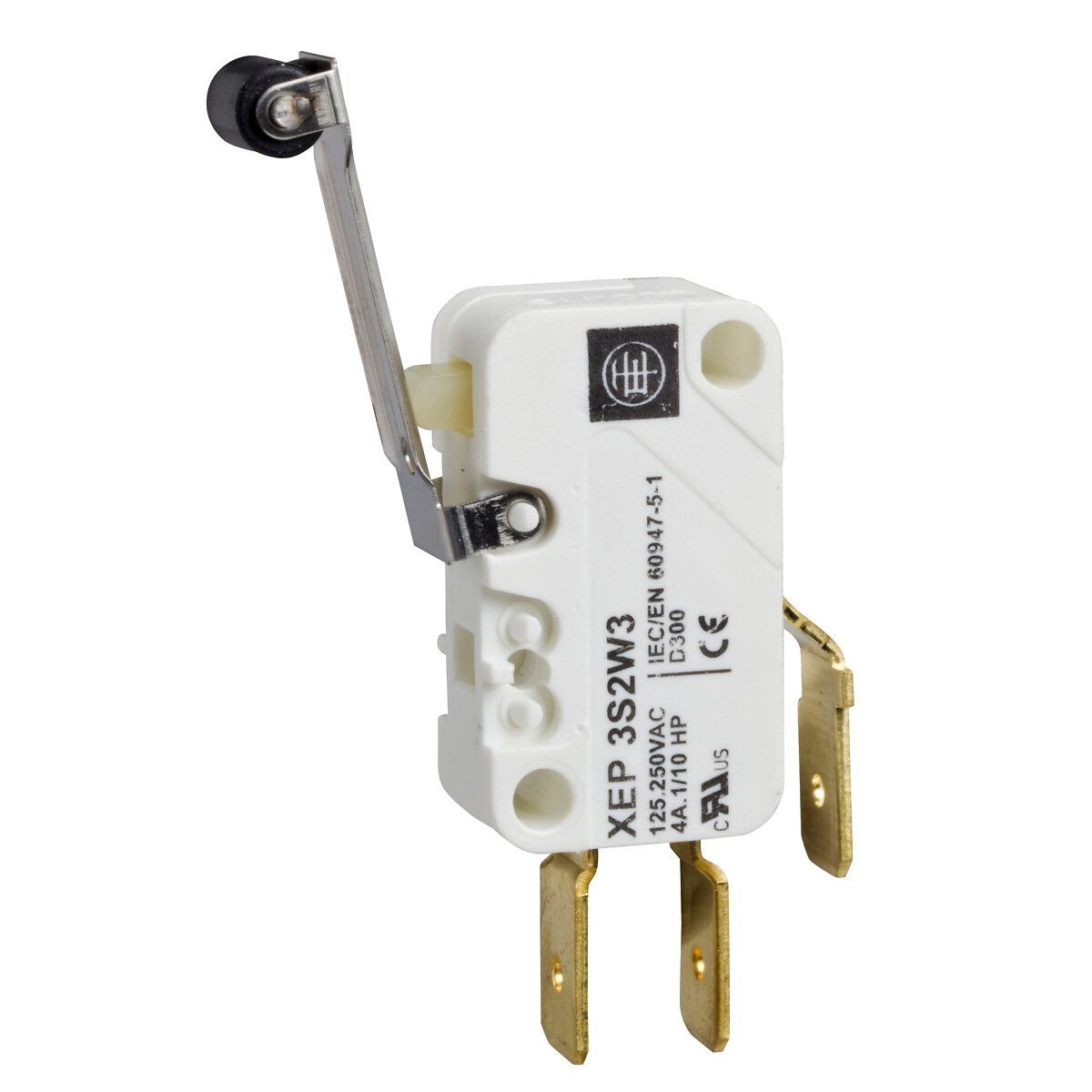

Miniature snap switch XEP3, roller lever, cable clip tags
END OF COMMERCIALISATION End of commercialization date : September 30th 2026 End of service date : September 30th 2026
Expand all
Datasheet
Range of product
OsiSense XC
Series name
Special format
Product or component type
Microswitch
Device short name
XEP3
Detector design
Miniature, DIN 41635 A format
ETIM classification
ETIM 9 - EC000030 - End switch
Head type
Plunger head
Body material
Polyester
Lever material
Glass reinforced polyamide roller
stainless steel
stainless steel
Lever fixing position
B
Movement of operating head
Linear
Type of operator
Roller lever
Switch actuation
Horizontal
Type of approach
Lateral approach
Marking
CE
Standards
CURus
IEC 60947-5-1
IEC 61058
UL 1054
IEC 60947-5-1
IEC 61058
UL 1054
Indivisible sale quantity
1
Mechanical durability
20000000 cycles
Contact code designation
B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to IEC 60947-5-1 appendix A
Electrical connection
4.8 mm cable clip tags
Contacts type and composition
1 C/O standard
Contacts material
AgNi
Terminals description ISO n°1
(1-2-4)OC
Contact operation
Snap action
Inter contact distance
0.4 mm
[Ith] conventional free air thermal current
15 A at 250 V 50/60 Hz
Maximum force for tripping
0.2 N lever fixing position in A, 0.4 N lever fixing position in B, 0.53 N lever fixing position in C
Minimum over travel
1.8 mm lever fixing position in C, 2.4 mm lever fixing position in B, 4.8 mm lever fixing position in A
Maximum differential travel
0.53 mm lever fixing position in C, 0.7 mm lever fixing position in B, 1.4 mm lever fixing position in A
Minimum release force
0.05 N lever fixing position in A, 0.1 N lever fixing position in B, 0.13 N lever fixing position in C
Maximum permissible end of travel force
10 N lever fixing position in B, 13 N lever fixing position in C, 5 N lever fixing position in A
Tripping point
20.5 mm lever fixing position in A, 20.5 mm lever fixing position in B, 20.5 mm lever fixing position in C
Height
16 mm
Width
10 mm
Depth
28 mm
Product weight
6.6 g
IP degree of protection
IP40
Ambient air temperature for operation
-25…125 °C
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
MA (Morocco)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916045152
Package 1 height
1.2 cm
Package 1 width
3.4 cm
Package 1 length
5.5 cm
Package 1 weight
0.005 kg
Unit type of package 2
S01
Number of units in package 2
200
New Package 2 GTIN 14
13666916045159
Package 2 height
15 cm
Package 2 width
15 cm
Package 2 length
40 cm
Package 2 weight
1.414 kg
Unit type of package 3
S01
Number of units in package 3
200
New Package 3 GTIN 14
23666916045156
Package 3 height
15 cm
Package 3 width
15 cm
Package 3 length
40 cm
Package 3 weight
1.414 kg
Expand all
Technical Drawings
Dimensions
- (1) 13.2 max.
Wiring Diagram
Single-pole CO Snap Action
- 1 : Black
- 2 : Grey
- 4 : Blue
Operating Curves
- (A) Number of cycles
- (B) Current
- 1 : Resistive circuit
- 2 : Inductive circuit
