XEP4E1FD

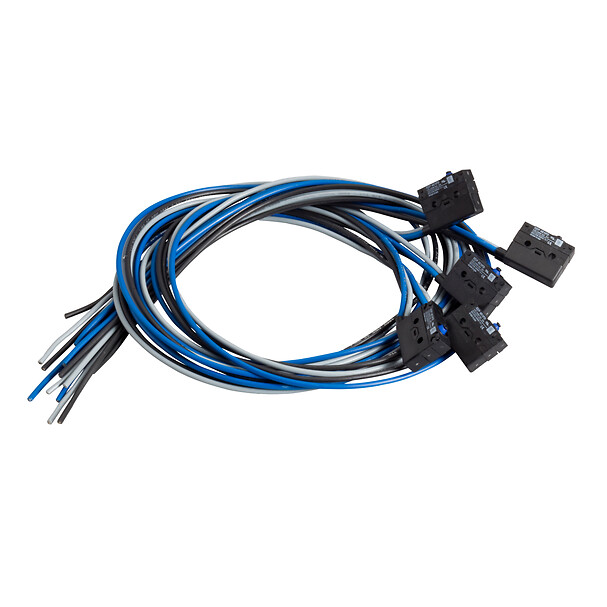

Microswitch, Limit switches XC Standard, miniature limit switch, flat plunger, cable length 0.5 m
END OF COMMERC ANNOUNCED End of commercialization date : September 30th 2026 End of service date : September 30th 2026
Expand all
Datasheet
Range of product
OsiSense XC
Series name
Special format
Product or component type
Microswitch
Device short name
XEP4
Detector design
Subminiature, DIN 41635 B format, sealed
Head type
Plunger head
Movement of operating head
Linear
Switch actuation
On end
Type of operator
Plunger
Type of approach
Vertical approach
Electrical connection
Pre-cabled
Cable composition
3 x 0.5 mm²
Contacts type and composition
1 C/O standard
Contact operation
Snap action
Contacts material
AgCdO
Body material
Polyester
Contact code designation
B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to IEC 60947-5-1 appendix A
Terminals description ISO n°1
(1-2-4)OC
IP degree of protection
IP67
Marking
CE
Standards
CURus
IEC 60947-5-1
IEC 61058
UL 1054
IEC 60947-5-1
IEC 61058
UL 1054
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1 CENTIMETER
Package 1 width
8 CENTIMETER
Package 1 length
10 CENTIMETER
Package 1 weight
0.016 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
100
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.845 KILOGRAM
Unit type of package 3
BAG
Number of units in package 3
5
Package 3 height
8 CENTIMETER
Package 3 width
3 CENTIMETER
Package 3 length
10 CENTIMETER
Package 3 weight
0.081 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Wiring Diagram
Single-pole CO Snap Action
- 1 : Black
- 2 : Grey
- 4 : Blue
