XEP4E1W7

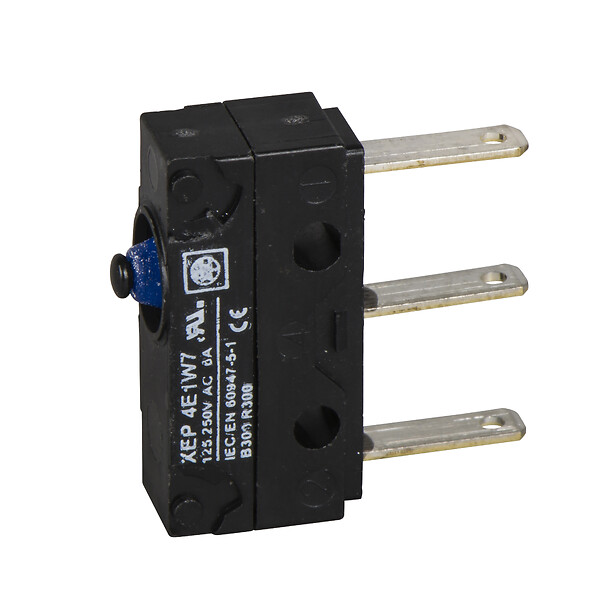

Microswitch, Limit switches XC Standard, miniature limit switch, flat plunger, 2.8 mm cable clip tags

To be discontinued End of commercialization date : 31 December 2025 End of service date : 31 December 2026

green premium
Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
OsiSense XC
Series name
Special format
Product or component type
Microswitch
Device short name
XEP4
Detector design
Subminiature, DIN 41635 B format, sealed
Head type
Plunger head
Movement of operating head
Linear
Type of operator
Plunger
Switch actuation
On end
Type of approach
Vertical approach
Electrical connection
2.8 mm cable clip tags
Contacts type and composition
1 C/O standard
Contact operation
Snap action
Contacts material
AgCdO
Body material
Polyester
Tags material
Tinned brass
Maximum force for tripping
2.5 N lever fixing position in A
2.5 N lever fixing position in B
Minimum release force
0.8 N lever fixing position in A
0.8 N lever fixing position in B
Maximum permissible end of travel force
10 N lever fixing position in A
10 N lever fixing position in B
Tripping point
8.4 mm lever fixing position in A
8.4 mm lever fixing position in B
Maximum differential travel
0.13 mm lever fixing position in A
0.13 mm lever fixing position in B
Minimum over travel
0.6 mm lever fixing position in A
0.6 mm lever fixing position in B
Inter contact distance
0.4 mm
Contact code designation
B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to EN/IEC 60947-5-1 appendix A
R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to EN/IEC 60947-5-1 appendix A
[Ith] conventional free air thermal current
7.5 A at 250 V 50/60 Hz
Mechanical durability
2000000 cycles
Width
6 mm
Height
10 mm
Depth
20 mm
Net weight
2.4 g
Terminals description ISO n°1
(1-2-4)OC
IP degree of protection
IP67
Ambient air temperature for operation
-40…125 °C
Marking
CE
Standards
EN 60947-5-1
IEC 60947-5-1
CURus
UL 1054
EN 61058
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
0.700 cm
Package 1 Width
2.000 cm
Package 1 Length
2.000 cm
Package 1 Weight
2.000 g
Unit Type of Package 2
BB1
Number of Units in Package 2
5
Package 2 Height
1.000 cm
Package 2 Width
5.000 cm
Package 2 Length
6.000 cm
Package 2 Weight
13.000 g
Unit Type of Package 3
S01
Number of Units in Package 3
100
Package 3 Height
15.000 cm
Package 3 Width
15.000 cm
Package 3 Length
40.000 cm
Package 3 Weight
472.000 g
Sustainable offer status
Green Premium product
REACh Regulation
REACh Declaration
REACh free of SVHC
Yes
EU RoHS Directive
EU RoHS Declaration
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
Yes
Circularity Profile
No need of specific recycling operations
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months

Expand all

Technical Drawings

Dimensions

epds

Wiring Diagram

Single-pole CO Snap Action

epds
  • 1 : Black
  • 2 : Grey
  • 4 : Blue

Operating Curves

epds
  • (A) Number of cycles
  • (B) Current
