XESP10215

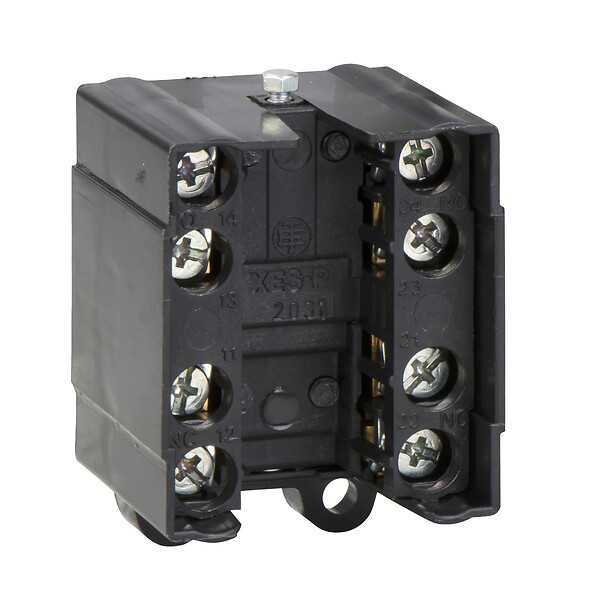

Limit switch contact block, Limit switches XC Standard, XESP, 2C/O snap action, simultaneous, silver plated
COMMERCIALISED
Expand all
Datasheet
Range of product
TE LIMIT SWTES XC STNDRD
Series name
STANDARD FORMAT
Product or component type
LIMIT SWITCH CONTACT BLOCK
Device short name
XESP
Contact operation
SNAP ACTION SIMULTANEOUS
Contacts type and composition
2 OC
Product compatibility
XC2J
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.75...2 x 1.5 mm²
Contacts insulation form
ZA
Contacts material
SILVER PLATED CONTACTS
Positive opening
WITHOUT
Contact code designation
A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to EN/IEC 60947-5-1 appendix A,
Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1 appendix A
Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1 appendix A
Resistance across terminals
25 mOhm conforming to IEC 60255-7 category 3
Unit type of package 1
PCE
Number of units in package 1
1
