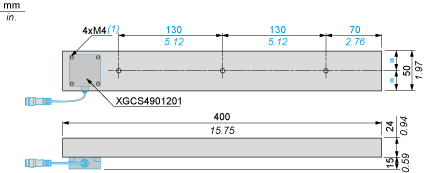

Technical Drawings
Field Expanders
Distance Between Field Expanders
Tag | e1 | e2 | e3 |
---|---|---|---|
XGHB90E340 XGHB520246 | 195 | 285 | 195 |
XGHB320345 | 420 | 540 | 450 |
Distance Between Field Expanders
Field expanders | |
---|---|
e (mm) | h (mm) |
15 | 30 |
Dialogue Zones for Field Expanders
Dialogue Zones for Field Expanders
Dialogue Zones for Field Expanders
Dialogue Zones for Field Expanders
