XGST2020

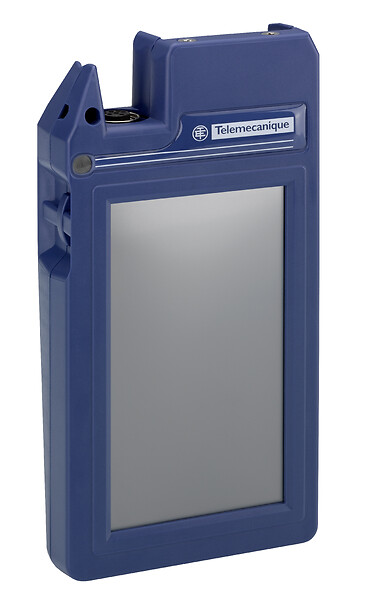

Portable diagnostic terminal, Radio frequency identification XG, RFID diagnostics 13.56 MHz

arrow

Commercialized

Download pdf datasheet Find a distributor

Expand all

Datasheet

Range of product
Telemecanique Radio frequency identification XG
Product or component type
Portable diagnostic terminal
RFID diagnostic terminal name
XGST
Processor name
CPU ARM7
RFID frequency
13.56 MHz
Terminal use
Diagnostics on compact stations
Read / write operations on tags
[Us] rated supply voltage
5 V DC AC external adaptor
3.7 V DC internal battery
Autonomy
8 h
Memory description
Expandable USB memory stick, up to 2 GB
Internal data storage Compact Flash, 2 GB
Internal RAM RAM/SDRAM, 256 kB
Display type
OLED colour touchscreen
Display size
54 x 95 mm
Pixel resolution
480 x 272 pixels
Status LED
1 LED charging
Communication port support
USB
RS485 non isolated
Marking
CE
Net weight
0.295 kg
Product certifications
CE
Ambient air temperature for operation
0…45 °C
Ambient air temperature for storage
-20…45 °C
Relative humidity
5…95 %
IP degree of protection
IP40
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
5.3 cm
Package 1 Width
8.9 cm
Package 1 Length
16.4 cm
Package 1 Weight
385.0 g
Unit Type of Package 2
S01
Number of Units in Package 2
6
Package 2 Height
15.0 cm
Package 2 Width
15.0 cm
Package 2 Length
40.0 cm
Package 2 Weight
2.535 kg
REACh Regulation
REACh Declaration
REACh free of SVHC
Yes
EU RoHS Directive
EU RoHS Declaration
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
Yes
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

Technical Drawings

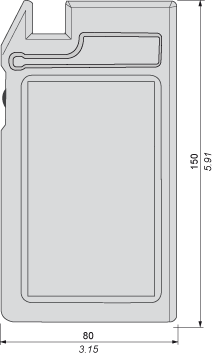

Dimensions

RFID Handheld Terminal

epds
