XGSZ09L2

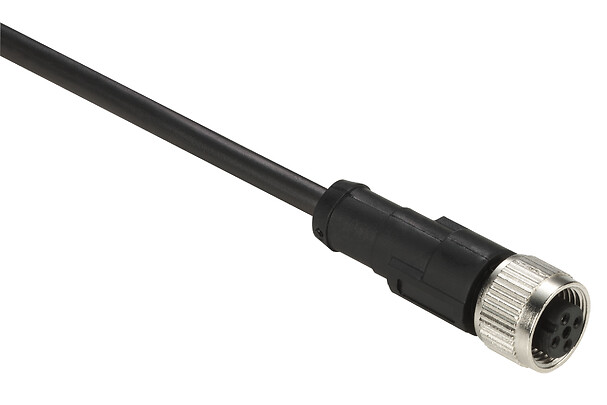

Radio frequency identification XG, pre wired M12 female connector, cable 2 m, IP67
Commercialized
Expand all
Datasheet
Range of product
Telemecanique Radio frequency identification XG
Accessory / separate part category
Connection accessories
Accessory / separate part type
Connecting cable
Accessory / separate part designation
Pre-wired M12 female connector
Accessory / separate part destination
For 24 V DC supply of connection box
Cable length
2 m
Product compatibility
TCSAMT31FP
XGSZ33ETH
XGSZ33ETH
Electrical connection
1 female connector M12 4 pins A coding
Colour
Black
Net weight
0.115 kg
IP degree of protection
IP67
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
2.000 cm
Package 1 Width
15.500 cm
Package 1 Length
17.500 cm
Package 1 Weight
85.900 g
Unit Type of Package 2
S02
Number of Units in Package 2
40
Package 2 Height
15.000 cm
Package 2 Width
30.000 cm
Package 2 Length
40.000 cm
Package 2 Weight
3.792 kg
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Expand all
Technical Drawings
Wiring Diagram
Modbus Connections
| Pin no. | Signal | |
|---|---|---|
| 1 | Red | + 24 VDC |
| 2 | NC | - |
| 3 | Black | 0 VDC |
| 4 | NC | - |
