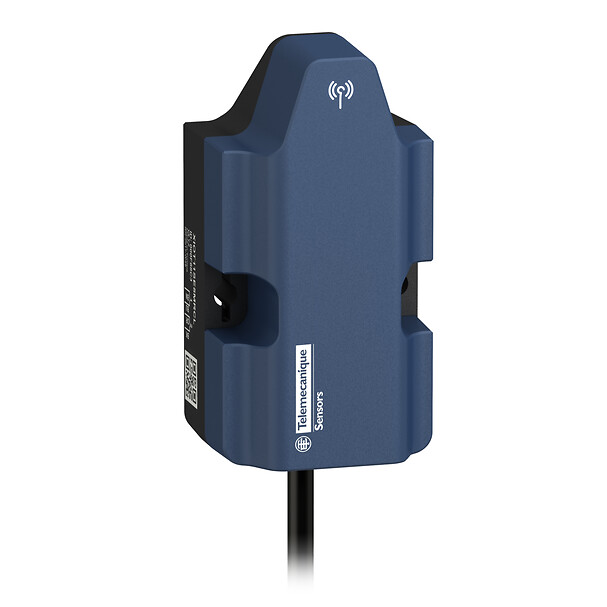

XIOT11SE0MRCL
Wireless transmitter, Dry contact LPWAN Subscription not included
Commercialised
Expand all
Datasheet
[Us] rated supply voltage
3.6 V nominal
Battery type
Lithium integrated
Electrical connection
Cable 2 m
Range of product
Telemecanique Cloud connected sensor XIOT
Product or component type
Wireless transmitter
type of license
Registration required
Communication network type
Sigfox Europe
Mode of transmission
1 status frame per day
On change on one of the inputs
On change on one of the inputs
Acquisition speed
50 frames/day
6 frames/h
6 frames/h
Transmission rate
100 bit/s
Fixing mode
By screws
Operating distance
<= 10000 m
Directives
1999/5/EC - R&TTE directive
Product certifications
CE
Sigfox ready
Sigfox ready
Standards
EN 301-489-1
ETSI EN 300 220-2
IEC 62368-1
ETSI EN 300 220-2
IEC 62368-1
IP degree of protection
IP66
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S03
Number of units in package 2
18
Package 2 height
30 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
5.592 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Connections
Wiring Diagram
Connections

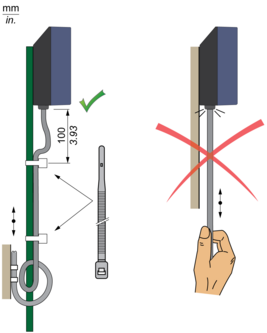

Wiring Precaution
Mounting

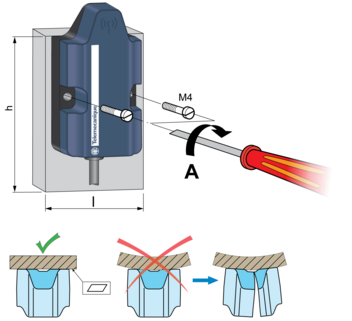

Screw Mounting
Mounting

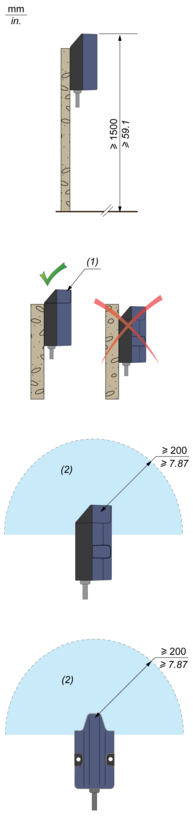

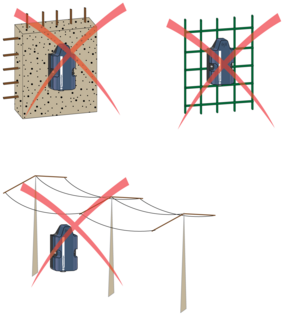

Mounting Precautions
Mounting
Mounting in a Metal Cabinet
Mounting
Signal Attenuation According to the Material
Expand all
Documents & Downloads
Document name
Date
Size
2024-02-07
3270597
2024-02-07
3287748
Document name
Date
Size
2021-03-29
3721264
2021-02-02
4211694
Document name
Date
Size
7/18/2024
1895145
7/18/2024
24605
7/18/2024
252546
7/18/2024
25629
7/18/2024
29371
7/18/2024
29783
7/18/2024
32258
7/18/2024
34643
7/18/2024
36597
7/18/2024
40281
7/18/2024
53082
7/18/2024
53665
7/18/2024
58753
7/18/2024
78700
7/18/2024
82664
7/18/2024
97427
Document name
Date
Size
2020-06-30
1616499
2022-06-09
1508212
Document name
Date
Size
2025-02-28
234433
Document name
Date
Size
2021-01-01
15346686
Document name
Date
Size
2023-12-04
559237
Expand all
Related products & accessories
XCKN2154P20
Limit switch, Limit switches XC Standard, XCKN, steel square rod lever 3 mm, 1NC+1 NO, snap, M20
XMLA001R2C11
pressure switch XMLA 1 bar - fixed scale 1 threshold - 1 C/O

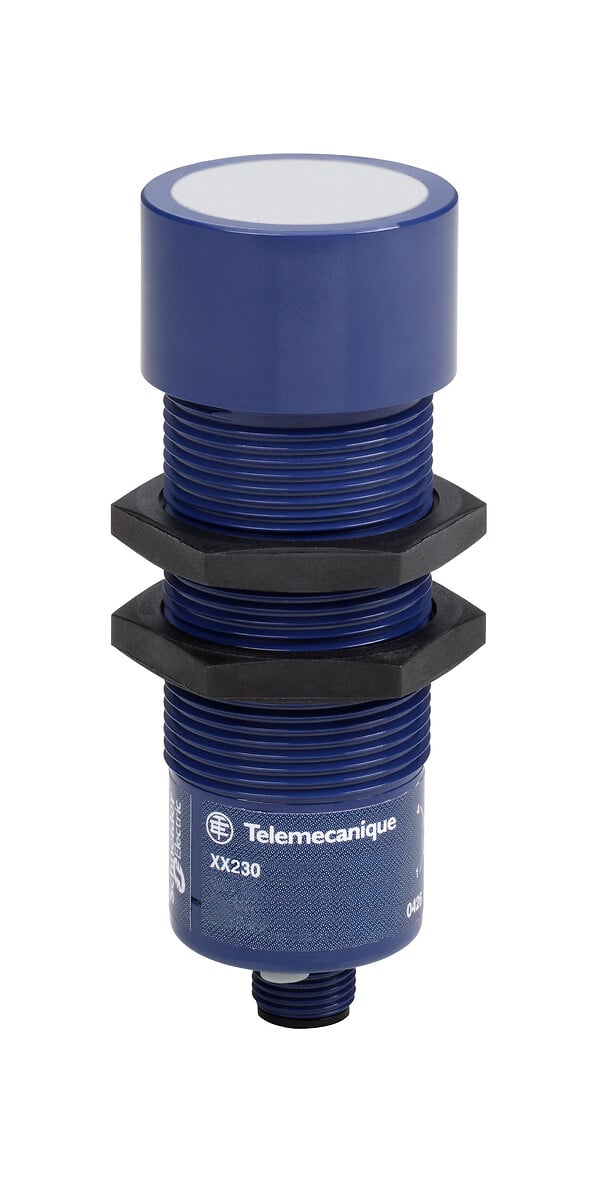

XX230A10HA00M12
