XMLP016BD790

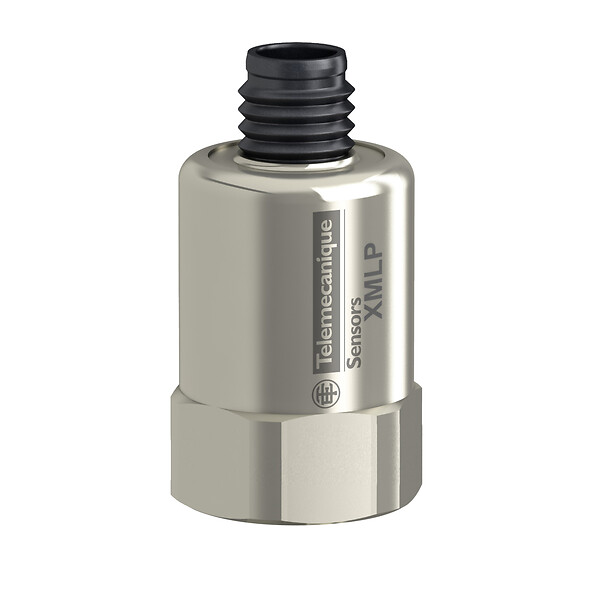

Pressure sensor, XMLP, pressure range 16 bar, output 0-10 V DC, M12 connector
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Pressure sensors XM
Pressure sensor type
Pressure transmitter
Product or component type
Electronic pressure sensors
Pressure sensor name
XMLP
ETIM classification
ETIM 9 - EC000243 - Pressure switch
Materials in contact with fluid
Stainless steel type AISI 303
Operating position
Any position
Maximum permissible accidental pressure
48 Bar
Destruction pressure
96 Bar
Controlled fluid
Fresh water (0-135 °C), air (-40-135 °C), hydraulic oil (-40-135 °C), gas (-40-135 °C), refrigeration fluid (-40-135 °C)
Fluid connection type
SAE 7/16-20UNF-2B (female) with schrader
Local display
Without
Diameter
26 mm
Product certifications
CE
cULus
RCM
cULus
RCM
Standards
IEC 61326-2-3
NSF ANSI 61
NSF ANSI 61
Indivisible sale quantity
1
Quantity per set
Set of 1
Type of packing
Individual
Mechanical durability
10000000 cycles
Electrical connection
1 male connector M12 4 pins
Electrical circuit type
Control circuit
[Us] rated supply voltage
24 V DC SELV (voltage limits: 12-33 V)
[Uimp] rated impulse withstand voltage
0.5 kV
Current consumption
< 7 mA
Protection type
Load short-circuit
reverse polarity
reverse polarity
Type of output signal
Analogue
Analogue output function
0...10 V, 3-wire
Response time on output
<= 2 ms 10...90 % of full scale
Measurement accuracy
+/- 0,5 % de la plage de mesure
Accuracy
0.1 % of the measuring range
Drift of the sensitivity
+/- 0,02 % of measuring range/°K
Drift of the zero point
+/- 0,02 % of measuring range/°K
Length
44 mm
Product weight
0.1 kg
IP degree of protection
IP65 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69K conforming to IEC 60529
Ambient air temperature for operation
-30…85 °C
Ambient air temperature for storage
-50…100 °C
Shock resistance
100 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
20 gn (f = 15-2000 Hz) conforming to IEC 60068-2-6
Electromagnetic compatibility
Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 2 kV, electrostatic discharge immunity test conforming to IEC 61000-4-2 8 kV air, 4 kV contact, 1.2/50 µs shock waves immunity test conforming to IEC 61000-4-5 1 kV 42 Ohm, immunity to magnetic fields conforming to IEC 61000-4-8 100 A/m 50 Hz, susceptibility to electromagnetic fields conforming to IEC 61000-4-3 10 V/m 80...3000 MHz, radiated RF fields conforming to IEC 61000-4-6 10 V 0.01...80 MHz
Protective treatment
TC
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
CH (Switzerland)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916023075
Package 1 height
4.6 cm
Package 1 width
4.4 cm
Package 1 length
8.7 cm
Package 1 weight
0.1 kg
Unit type of package 2
S01
Number of units in package 2
24
New Package 2 GTIN 14
13666916023072
Package 2 height
15 cm
Package 2 width
15 cm
Package 2 length
40 cm
Package 2 weight
2.642 kg
New Package 3 GTIN 14
23666916023079
Expand all
Technical Drawings
Dimensions
- (1) SW24 tightening torque ≤ 10 N.m / 221 lb-in
Wiring Diagram
3-Wire Technique (0-10 V)
