XMLP025BD11F

Telemecanique Pressure sensors XM

Electronic pressure sensors

Pressure transmitter

XMLP

Control circuit

Without

Air (-30-135 °C), fresh water (0-135 °C), hydraulic oil (-30-135 °C), gas (-30-135 °C), refrigeration fluid (-30-135 °C)

G 1/4A (male) conforming to DIN 3852-E

1 male connector M12 4 pins

5 V DC SELV (voltage limits: 4.5-5.5 V)

< 7 mA

Analogue

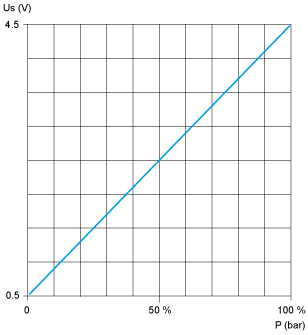

0.5...4.5 V, 3-wire

Set of 1

Individual

Fluorocarbon FPM
stainless steel AISI 316L

Any position

Load short-circuit
reverse polarity

Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 2 kV, electrostatic discharge immunity test conforming to IEC 61000-4-2 8 kV air, 4 kV contact, 1.2/50 µs shock waves immunity test conforming to IEC 61000-4-5 1 kV 42 Ohm, immunity to magnetic fields conforming to IEC 61000-4-8 100 A/m 50 Hz, susceptibility to electromagnetic fields conforming to IEC 61000-4-3 10 V/m 80...3000 MHz, radiated RF fields conforming to IEC 61000-4-6 10 V 0.01...80 MHz

<= 2 ms 10...90 % of full scale

+/- 0,5 % de la plage de mesure

0.1 % of the measuring range

+/- 0,02 % of measuring range/°K

+/- 0,02 % of measuring range/°K

IEC 61326-2-3
NSF ANSI 61

CE
cULus
RCM

TC

20 gn (f = 15-2000 Hz) conforming to IEC 60068-2-6

100 gn for 11 ms conforming to IEC 60068-2-27

IP65 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69K conforming to IEC 60529

PCE

1

4.2 CENTIMETER

4.7 CENTIMETER

8.7 CENTIMETER

94 KILOGRAM

1
