XMPR12B2133

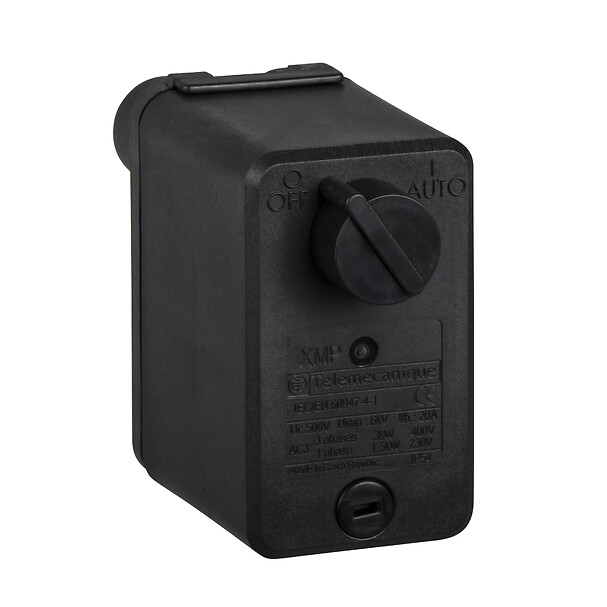

Pressure sensors XM, pressure sensor XMP, 12 bar, G 1/4 female, 2 NC, ON/OFF knob control
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Pressure sensors XM
Pressure sensor type
Electromechanical pressure sensor
Pressure sensor name
XMP
Fluid connection type
G 1/4 (female) conforming to ISO 228
Controlled fluid
Air (0-70 °C), fresh water (0-70 °C), sea water (0-70 °C)
Cable entry
2 entries tapped for Pg 13.5 cable gland conforming to NF C 68-300
Contacts type and composition
2 NC snap action
Product specific application
Not applicable
Pressure switch type of operation
Regulation between 2 thresholds
Electrical connection
Screw-clamp terminals, clamping capacity: minimum : 2 x 4 mm²
Electrical circuit type
Power circuit
Scale type
Adjustable differential
Local display
Without
Type of decompression valve
Straight valve olive connection
Control type
ON/OFF knob
Terminal block type
4 terminals
Pressure actuator
Diaphragm
Materials in contact with fluid
Canvas covered nitrile
chromated zinc alloy
chromated zinc alloy
Enclosure material
PA impregnated with fibreglass
Operating position
Any position
Operating rate
10 CYCLE_PER_MINUTE
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A
Setting
Nut
Terminals description ISO n°1
(1-2)NC
(3-4)NC
(3-4)NC
Product certifications
EAC
Standards
CE
IEC 60947-4-1
IEC 60947-4-1
Vibration resistance
3 gn conforming to IEC 60068-2-6 (f = 10-500 Hz)
Shock resistance
50 gn conforming to IEC 60068-2-27
Electrical shock protection class
Class I conforming to IEC 60536
IP degree of protection
IP65 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
8
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
4.628 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
With Straight, Olive Connection, Decompression Valve
- ØA = G 1/4
- (1) 2 tapped entries for Pg 13.5
Minimum Mounting Clearance
- ØA = G1/4
- (1) Minimum clearance zone for screwing-on pressure switch at point A
Wiring Diagram
Terminal Connections
Curves
Operating Curves
- (y) Rising pressure
- (x) Falling pressure
- 1 : Maximum differential
- 2 : Minimum differential
Curves
- (y) Rising pressure
- (x) Falling pressure
- 1 : Maximum differential
- 2 : Minimum differential
- (y) Pressure
- (x) Time
- (1) Adjustable value
- PH : High point
- PB : Below point
