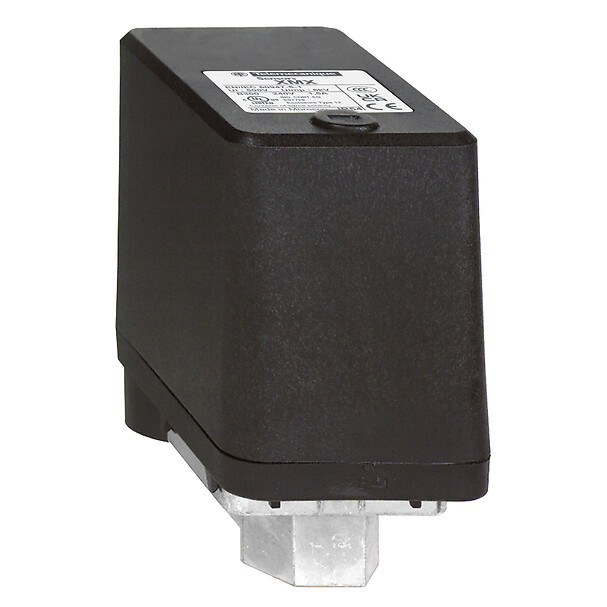

XMXA06L2435

Expand all

Datasheet

Range of product

Telemecanique Pressure sensors XM

Pressure sensor type

Electromechanical pressure sensor

Pressure sensor name

XMX

Contacts type and composition

1 C/O snap action

Controlled fluid

Air (0-70 °C), fresh water (0-70 °C), sea water (0-70 °C)

Fluid connection type

4 x G 1/4 (female) conforming to ISO 228

Cable entry

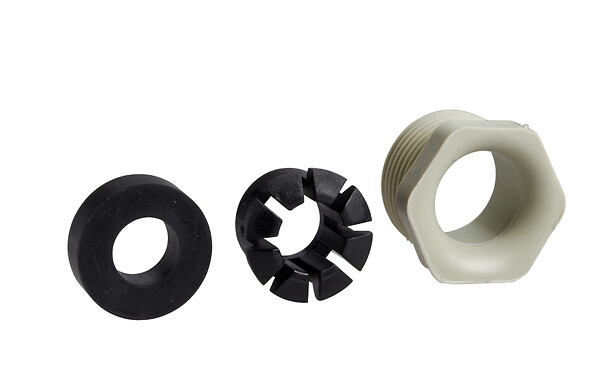

2 entries tapped for Pg 13.5 cable gland conforming to NF C 68-300

Electrical connection

Screw-clamp terminals, clamping capacity: 1 x 1...2 x 2.5 mm²

Electrical circuit type

Control circuit

Setting

Internal

Colour of cover

Black opaque

Pressure switch type of operation

Regulation between 2 thresholds

Scale type

Fixed differential

Local display

Without

Enclosure material

PC impregnated with Lexan 500R

Pressure actuator

Diaphragm

Materials in contact with fluid

Canvas covered nitrile
chromated zinc alloy

Operating position

Any position

Operating rate

10 CYCLE_PER_MINUTE

Standards

CE
IEC 60947-5-1

Product certifications

CCC
CSA
UL

Protective treatment

TC

Electrical shock protection class

Class I conforming to IEC 536

IP degree of protection

IP54 conforming to IEC 60529

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

11.5 CENTIMETER

Package 1 width

6.5 CENTIMETER

Package 1 length

17 CENTIMETER

Package 1 weight

470 GRAM

Unit type of package 2

S03

Number of units in package 2

20

Package 2 height

30 CENTIMETER

Package 2 width

30 CENTIMETER

Package 2 length

40 CENTIMETER

Package 2 weight

9.841 KILOGRAM

Indivisible sale quantity

1

California proposition 65

WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

Technical Drawings

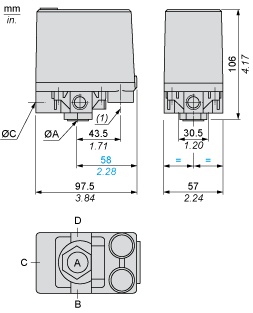

Dimensions

(A =B = C= D) G 1/4 (female)
(1) 2 tapped entries PG 13.5

Minimum Mounting Clearance

(ØA = ØB = ØC = ØD) G 1/4 (female)
(1) Minimum clearance zone for screwing-on pressure switch at point A

Wiring Diagram

Connections

Curves

Operating Curves

(y) Rising pressure
(x) Falling pressure
1 : Maximum differential
2 : Minimum differential

Curves

(y) Rising pressure
(x) Falling pressure
1 : Maximum differential
2 : Minimum differential
(y) Pressure
(x) Time
(1) Adjustable value
