XMXA25L2135

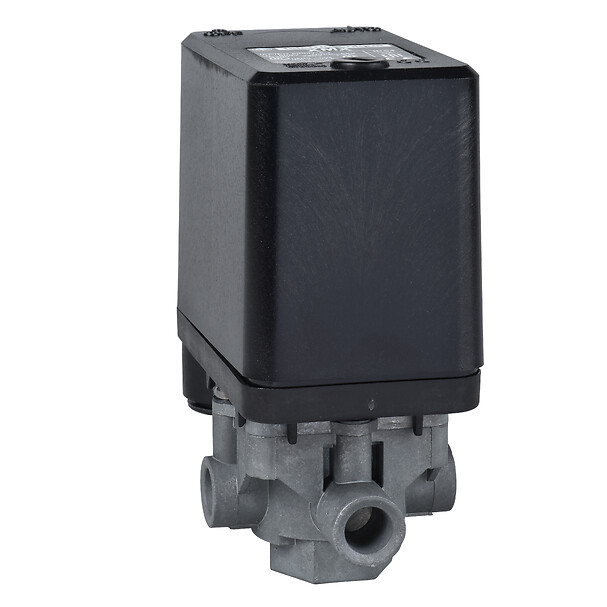

Pressure switch, XMX, pressure range 25 bar, adjustable scale, 1CO, 2 thresholds
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Pressure sensors XM
Pressure sensor type
Electromechanical pressure sensor
Pressure sensor name
XMX
Contacts type and composition
1 C/O snap action
Controlled fluid
Air (0-70 °C), fresh water (0-70 °C), sea water (0-70 °C)
Fluid connection type
G 1/4 (female) conforming to ISO 228
Cable entry
2 entries tapped for Pg 13.5 cable gland conforming to NF C 68-300
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 1...2 x 2.5 mm²
Electrical circuit type
Control circuit
Setting
Internal
Colour of cover
Black opaque
Pressure switch type of operation
Regulation between 2 thresholds
Scale type
Fixed differential
Local display
Without
Enclosure material
PC impregnated with Lexan 500R
Pressure actuator
Diaphragm
Materials in contact with fluid
Canvas covered nitrile
chromated zinc alloy
chromated zinc alloy
Operating position
Any position
Operating rate
10 CYCLE_PER_MINUTE
Standards
CE
IEC 60947-5-1
IEC 60947-5-1
Product certifications
CCC
CSA
UL
CSA
UL
Protective treatment
TC
Electrical shock protection class
Class I conforming to IEC 536
IP degree of protection
IP54 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
12 CENTIMETER
Package 1 width
6.5 CENTIMETER
Package 1 length
17 CENTIMETER
Package 1 weight
0.672 KILOGRAM
Unit type of package 2
S03
Number of units in package 2
17
Package 2 height
30 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
11.866 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

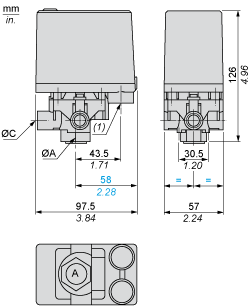

Dimensions
- (A) G 1/4 (female)
- (1) 2 tapped entries PG 13.5
Minimum Mounting Clearance
- (ØA) G 1/4 (female)
- (1) Minimum clearance zone for screwing-on pressure switch at point A
Wiring Diagram
Connections
Curves
Operating Curves
- (y) Rising pressure
- (x) Falling pressure
- 1 : Maximum differential
- 2 : Minimum differential
Curves
- (y) Rising pressure
- (x) Falling pressure
- 1 : Maximum differential
- 2 : Minimum differential
- (y) Pressure
- (x) Time
- (1) Adjustable value
