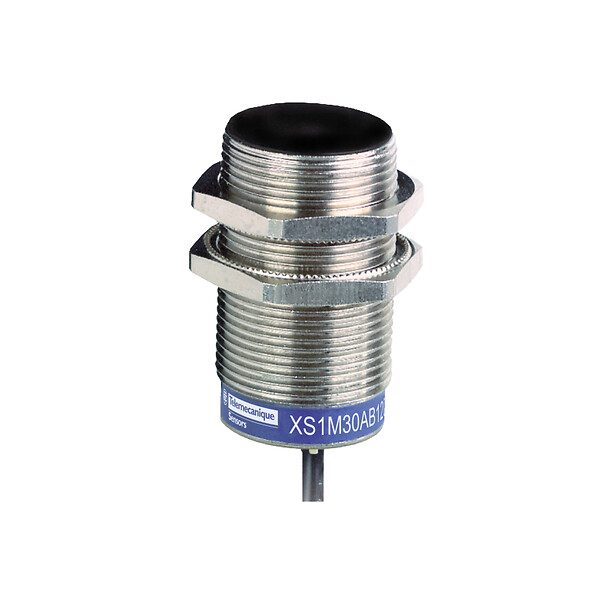

Datasheet
Expand all

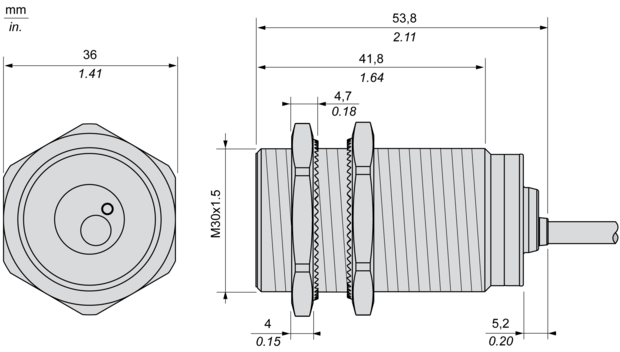

Technical Drawings
Side by side
e (1) ≥ 20 mm/0.79 in
Face to face
e (2) ≥ 120 mm/4.72 in
Facing a metal object
e (3) ≥ 30 mm/1.18 in.
Output current | Load impedance value | |
---|---|---|
12 V | 4...20 mA | R ≤ 8.2 Ω |
24 V | 4...20 mA | R ≤ 470 Ω |
Ensure a minimum of 10 V between the + and the - (terminal 3) of the sensor. |
2-Wire connection
(1) Output current
BN : Brown
BK : Black
BU : Blue

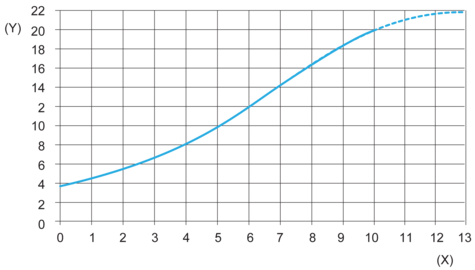

(Y) Is (mA)
(X) Sensors - object distance (mm)
