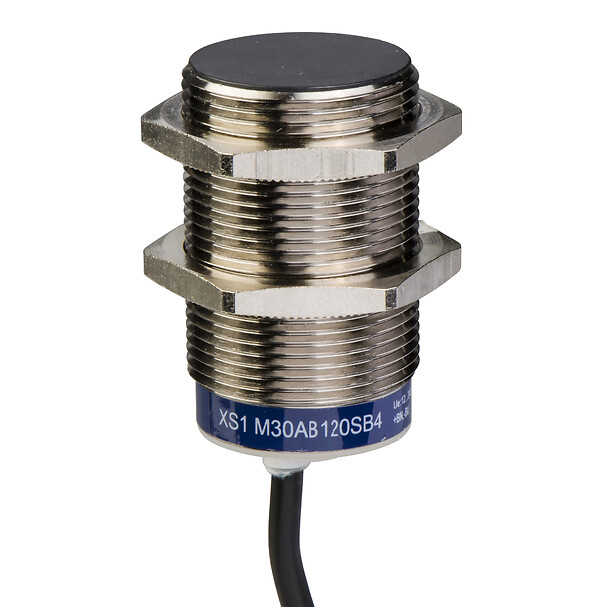

XS1M30AB120SB4
Inductive proximity sensors XS, inductive sensor XS1 M30, L50mm, brass, Sn10mm, 12...24 VDC, cable 5 m
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
Application
Sensor type
Inductive proximity sensor
Sensor name
XS1
Sensor design
Cylindrical M30
Size
54 mm
Body type
Fixed
Type of output signal
Analogue
Wiring technique
2-wire
Detector flush mounting acceptance
Flush mountable
Material
Metal
Analogue output range
4...20 mA
Electrical connection
Cable
[Us] rated supply voltage
12...24 V DC
Output circuit type
DC
IP degree of protection
IP67 conforming to IEC 60529
Enclosure material
Nickel plated brass
Detection face
Frontal
Thread type
M30 x 1.5
Front material
PPS
Sensing range
8...15 mm
Linearity error
+/- 2 mA
Repeat accuracy
<= 3% of Sr
Cable composition
3 x 0.34 mm²
Wire insulation material
PVC
Switching frequency
<= 300 Hz
Current consumption
4 mA no-load
Marking
CE
Product certifications
CSA
UL
UL
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
22
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
5.976 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
